Custom Optical Dome
Custom Optical Domes are precision components designed and manufactured according to specific optical system requirements. Optimized geometry, material selection, surface accuracy and coating design provide high transmission, mechanical durability and thermal stability.
Custom Optical Dome Overview
Custom Optical Domes are precision protective optical components manufactured from high-purity fused silica (SiO₂). The material provides excellent ultraviolet transmission, low optical absorption and stable performance across UV, visible and near-infrared wavelengths.
Chenyu Optics offers sapphire, fused silica, zinc sulfide (ZnS), zinc selenide (ZnSe), silicon and germanium domes for UV, visible, NIR, MWIR and LWIR applications.
Each optical dome can be customized according to customer drawings, including material, diameter, height, curvature, wall thickness, surface accuracy, surface quality and AR coating.
Key Advantages of Custom Optical Domes
Infrared Imaging, Sensing & Optical Protection
Custom optical domes protect imaging and sensing assemblies while providing application-specific geometry, transmission and environmental performance from UV through LWIR wavelengths.
Typical Specifications of Custom Optical Dome
| Material | Sapphire / Fused Silica / ZnS / ZnSe / Silicon / Germanium |
|---|---|
| Optical Function | Protective optical window / dome window |
| Dome Type | Custom Optical Dome |
| Transmission Range | UV / VIS / NIR / MWIR / LWIR, material dependent |
| Geometry | Customized |
| Dome Height | Customized |
| Diameter | Customized |
| Dome Shape | Customized |
| Surface Accuracy | λ/10 @ 633 nm |
| Surface Quality | 20-10 / 40-20 scratch-dig |

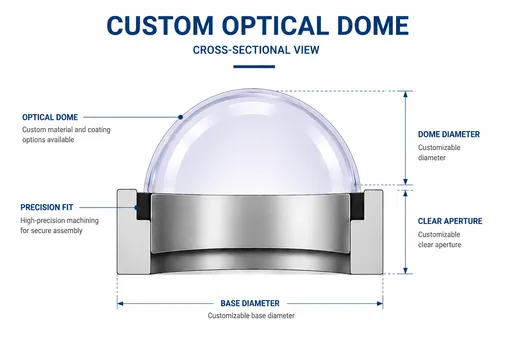

Custom Dome Geometry & Optical Principle
Why Choose Chenyu Optics for Custom Optical Domes
Chenyu Optics supports drawing-based custom optical dome manufacturing for laser, ultraviolet, sensing and aerospace optical systems, from prototype verification through repeat production.
Manufacturing Capability for Custom Optical Domes
Precision Optical Polishing
Controlled custom optical dome shaping and polishing for custom curvature, wall thickness, surface accuracy and surface quality.
Optical AR Coating
UV, VIS, NIR, MWIR and LWIR coatings designed for the selected material, wavelength and incident angle.
Inspection & Packaging
Dimensional, surface and optical inspection followed by clean handling and protective packaging for precision dome components.
Coating Options for Custom Optical Domes
Uncoated Custom Materials
Suitable when the natural UV, visible and near-infrared transmission of fused silica meets the optical system requirements.
UV AR Coating
Optimized to reduce reflection and improve transmission efficiency in ultraviolet imaging, sensing and laser systems.
VIS, NIR & Custom AR Coatings
Designed for visible, near-infrared or customer-specified wavelength ranges, incident angles and environmental conditions.
Custom Optical Dome Coating Selection
| Option | Typical Range | Recommended Use | Design Note |
|---|---|---|---|
| Uncoated | Material-dependent range | Broadband systems and prototypes | Natural surface reflection remains |
| UV AR | Customer-specified UV range | UV imaging, sensing and laser systems | Specify operating wavelength and laser conditions |
| VIS AR | Visible wavelength range | Imaging and optical sensor systems | Reduces visible surface reflection |
| NIR AR | Near-infrared wavelength range | NIR imaging and detection systems | Optimized for the specified incident angle |
| Custom AR | Customer specified | Laser and multispectral systems | Specify wavelength, AOI, power and environment |

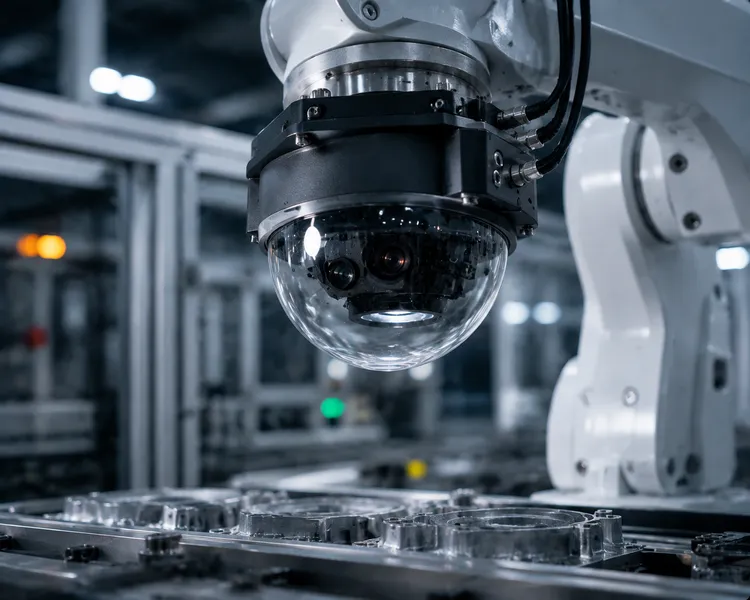

Applications of Custom Optical Domes
Infrared Imaging
Protective dome windows for MWIR and LWIR imaging assemblies.
Thermal Cameras
Infrared-transmitting protection for thermal camera optics.
Optical Sensors
Environmental protection for sensitive optical sensor assemblies.
Aerospace Optics
Thermally stable protective windows for aerospace optical systems.
Infrared Detection
Material-optimized optical protection for infrared detectors.
Multispectral Imaging
Custom material and coating solutions for multispectral systems.
Industrial Protection
Durable optical protection for industrial monitoring systems.
Precision Instruments
Application-specific protective domes for precision instruments.
Custom Optical Dome FAQ
What is a custom optical dome used for?
A custom optical dome protects sensitive optical assemblies while maintaining high transmission and stable performance in laser, UV imaging, sensing and precision optical systems.
What materials are available for custom optical domes?
Available materials include sapphire, fused silica, ZnS, ZnSe, silicon and germanium, selected according to wavelength and environmental requirements.
Can optical dome dimensions and geometry be customized?
Yes. Diameter, height, curvature, wall thickness, clear aperture, surface accuracy and dimensional tolerances can be customized according to the optical system.
What coatings are available for custom optical domes?
UV, VIS, NIR, MWIR and LWIR antireflection coatings are available according to the selected material, wavelength range, incident angle and environment.
Handling & Manufacturing Notes
Need Custom Optical Domes for Precision Optical Systems?
Send us your drawing, diameter, dome geometry, wall thickness, surface requirements, operating wavelength, laser parameters, coating specification and quantity. Chenyu Optics will review your requirements and provide a suitable custom optical dome manufacturing solution.
