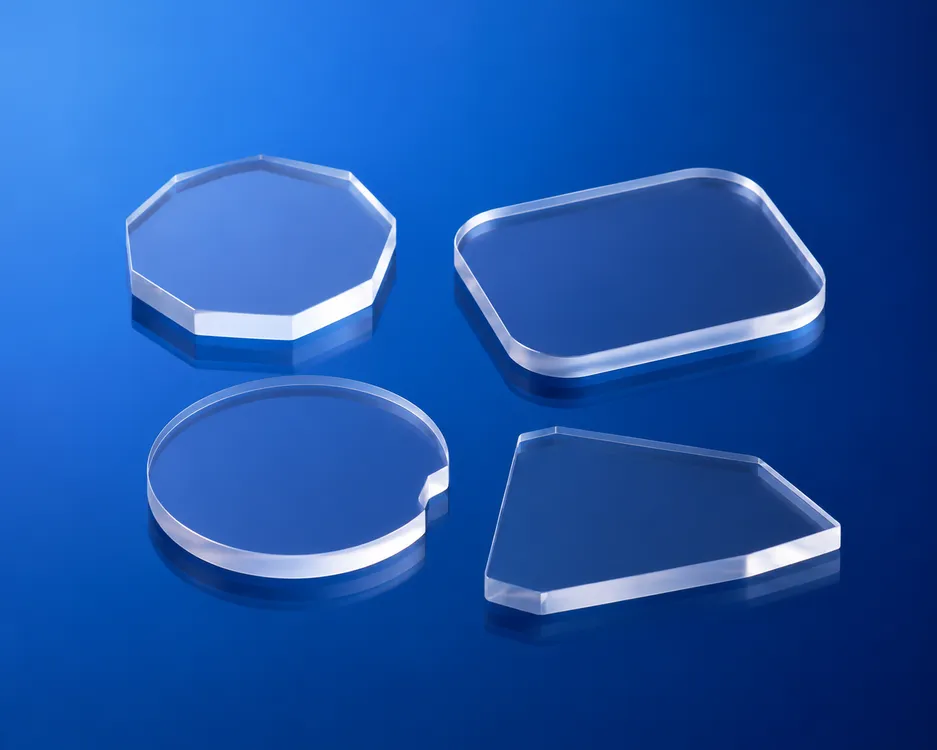

Custom Shaped Optical Window
Custom Shaped Optical Windows are precision optical components manufactured according to application-specific mechanical and optical requirements. Unlike standard circular windows, these components can be produced in customized geometric shapes, dimensions and configurations to meet complex system integration needs. Chenyu Optics manufactures custom shaped optical windows in optical glass, fused silica, sapphire, germanium and silicon, uncoated or with UV AR, VIS AR, NIR AR, MWIR AR and LWIR AR coatings.
Custom Shaped Optical Window Overview
Custom Shaped Optical Windows are precision optical components manufactured according to application-specific mechanical and optical requirements. Unlike standard circular windows, these components can be produced in customized geometric shapes, dimensions and configurations to meet complex system integration needs.
With flexible material options including optical glass, fused silica, sapphire, germanium and silicon, custom shaped optical windows provide excellent optical transmission, precise dimensional control and reliable surface quality. They are widely used in imaging systems, laser systems, infrared optics, optical instruments and industrial inspection equipment.
Chenyu Optics supports custom shaped optical window manufacturing according to customer drawings, including custom shape, dimensions, material and coating design for prototype and repeat production.
Key Advantages of Custom Shaped Optical Window

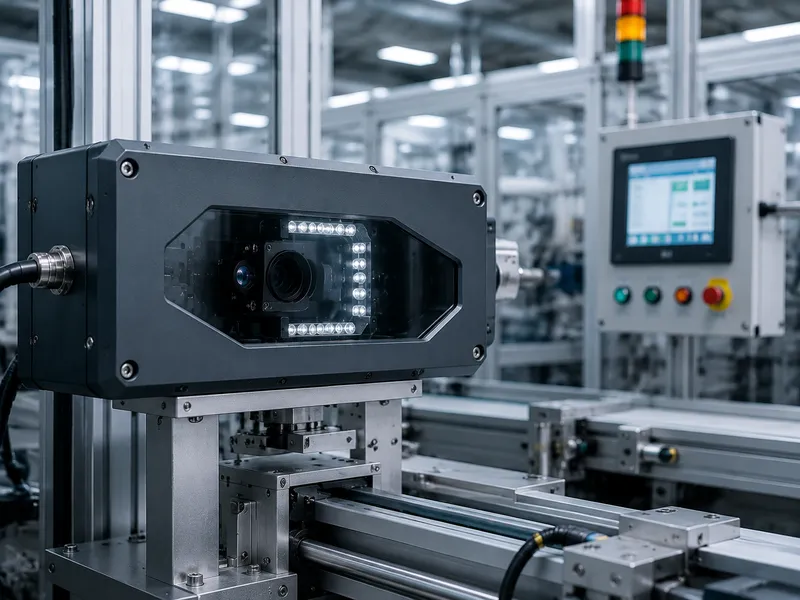

Imaging & Industrial Inspection Systems
Custom shaped optical windows are widely used for complex system integration in imaging systems, laser systems, infrared optics and industrial inspection equipment.
Typical Specifications of Custom Shaped Optical Window
| Material Options | Optical Glass, Fused Silica, Sapphire, Germanium, Silicon |
|---|---|
| Optical Function | Optical protection / Transmission window |
| Shape | Custom geometric design |
| Wavelength Range | UV / VIS / NIR / MWIR / LWIR (material dependent) |
| Thickness | Customized |
| Dimensions | Customized |
| Surface Flatness | λ/10 @ 633 nm |
| Surface Quality | 20-10 / 40-20 scratch-dig |
Spectral Transmission Curve (Typical)
Why Choose Chenyu Optics for Custom Shaped Optical Window
Chenyu Optics focuses on drawing-based precision optical window manufacturing for imaging, laser, infrared and industrial systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard custom shaped optical windows.
Manufacturing Capability for Custom Shaped Optical Window
Precision Dimensional Machining
Precise dimensional machining and optical surface processing to ensure accurate integration and stable optical performance.
Optical Coating
UV AR, VIS AR, NIR AR, MWIR AR and LWIR AR coating options across the full UV to infrared range.
Inspection & Packaging
Dimensional inspection, surface review, optical performance checking and protective packaging before shipment.
Custom Manufacturing Options for Custom Shaped Optical Window
Shape & Dimensions
Custom geometric shape, dimensions and thickness can be manufactured according to customer drawings and system integration requirements.
Material & Wavelength Range
Optical glass, fused silica, sapphire, germanium or silicon can be selected according to UV, visible, NIR, MWIR or LWIR operating requirements.
Coating & System Design
Uncoated, UV AR, VIS AR, NIR AR, MWIR AR, LWIR AR and custom coatings can be specified for imaging, laser or infrared applications.
Optical Window Product Comparison
| Custom Shaped Optical Window | Fused Silica Window | Sapphire Window | Germanium Window | |
|---|---|---|---|---|
| Shape Flexibility | Fully customized geometry, non-standard shapes supported | Standard circular/rectangular, application-optimized | Standard circular/rectangular, application-optimized | Standard circular/rectangular, application-optimized |
| Material Options | Optical glass, fused silica, sapphire, Ge, Si | Fused silica only | Sapphire only | Germanium only |
| Wavelength Range | UV / VIS / NIR / MWIR / LWIR | UV / VIS / NIR | UV / VIS / MWIR | MWIR / LWIR |
| Typical Applications | Complex system integration, aerospace, custom assemblies | UV spectroscopy, laser optics, semiconductor equipment | Protective windows, harsh environment optics | Thermal imaging, IR cameras |
Applications of Custom Shaped Optical Window
Imaging Systems
Custom-shaped windows for complex imaging system integration.
Optical Instruments
Application-specific window geometry for instrument optics.
Laser Systems
Custom optical windows for laser system integration.
Infrared Optical Systems
Custom-shaped infrared windows across MWIR and LWIR.
Thermal Imaging Equipment
Custom geometry windows for thermal imaging systems.
Aerospace Optical Systems
Precision custom-shaped windows for aerospace optical assemblies.
Custom Shaped Optical Window FAQ
What shapes can be customized for optical windows?
Custom optical windows can be manufactured in various shapes, including rectangular, square, polygonal, irregular, and application-specific geometries.
Which materials are available for custom shaped optical windows?
Available materials include optical glass, fused silica, sapphire, germanium, and silicon depending on wavelength and application requirements.
Can custom shaped windows be coated?
Yes. UV, VIS, NIR, MWIR, LWIR AR coatings, and other customized coatings are available.
What applications require custom shaped optical windows?
They are commonly used in imaging systems, laser systems, infrared equipment, industrial inspection, and specialized optical assemblies.
What information should I provide for a quotation?
Please provide shape/drawing, dimensions, thickness, material, coating requirement and quantity if available.
Where can I learn more about optical window materials?
Additional optical material information can be found from Edmund Optics.
Related Products for Custom Shaped Optical Window
Need Custom Shaped Optical Windows?
Send us your drawing, shape requirement, dimensions, material and coating requirements. Chenyu Optics will review the optical and mechanical specifications and provide a suitable custom shaped optical window manufacturing suggestion.
