Optical Lenses Manufacturer | Custom Precision Optical Components
Chenyu Optics is a custom optical lenses manufacturer supplying precision lenses for global B2B customers. Our manufacturing capability covers spherical lenses, aspheric lenses, cylindrical lenses and achromatic lenses using optical glass, fused silica and infrared materials. Custom designs are available with precision polishing, coating and inspection according to customer drawings.
Optical Lenses Overview

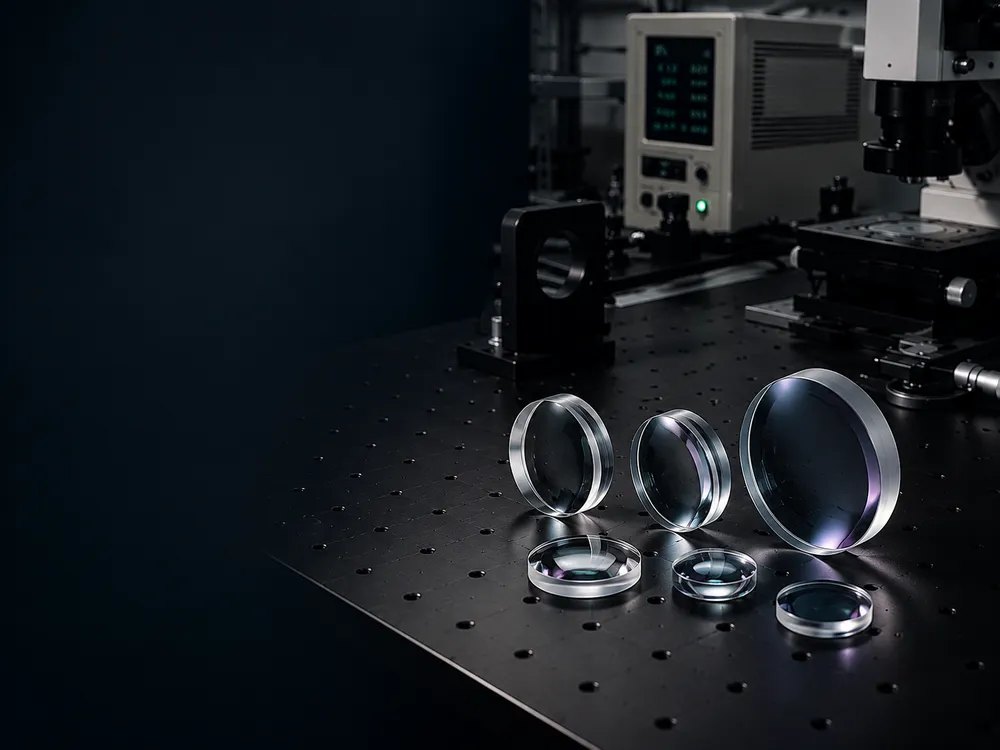

Optical lenses are curved optical components designed to focus, collimate or diverge light for imaging, illumination and beam-shaping applications. As a custom optical lenses manufacturer, Chenyu Optics produces spherical and aspheric lens geometries to meet specific focal length, aperture, surface quality and coating requirements.
Lens range includes plano convex, plano concave, double convex, double concave, aspheric, achromatic, cylindrical and infrared lenses, manufactured from optical glass, fused silica and infrared materials such as ZnSe, ZnS, germanium and silicon, supporting applications across the visible, UV, NIR and IR ranges.
Chenyu Optics manufactures each optical lens to customer drawings, with in-house precision polishing, CNC grinding, optical coating and dimensional inspection supporting projects from prototype quantities through OEM production volume.
Optical Lens Types
Select a lens type to view specifications, design data and ordering options.

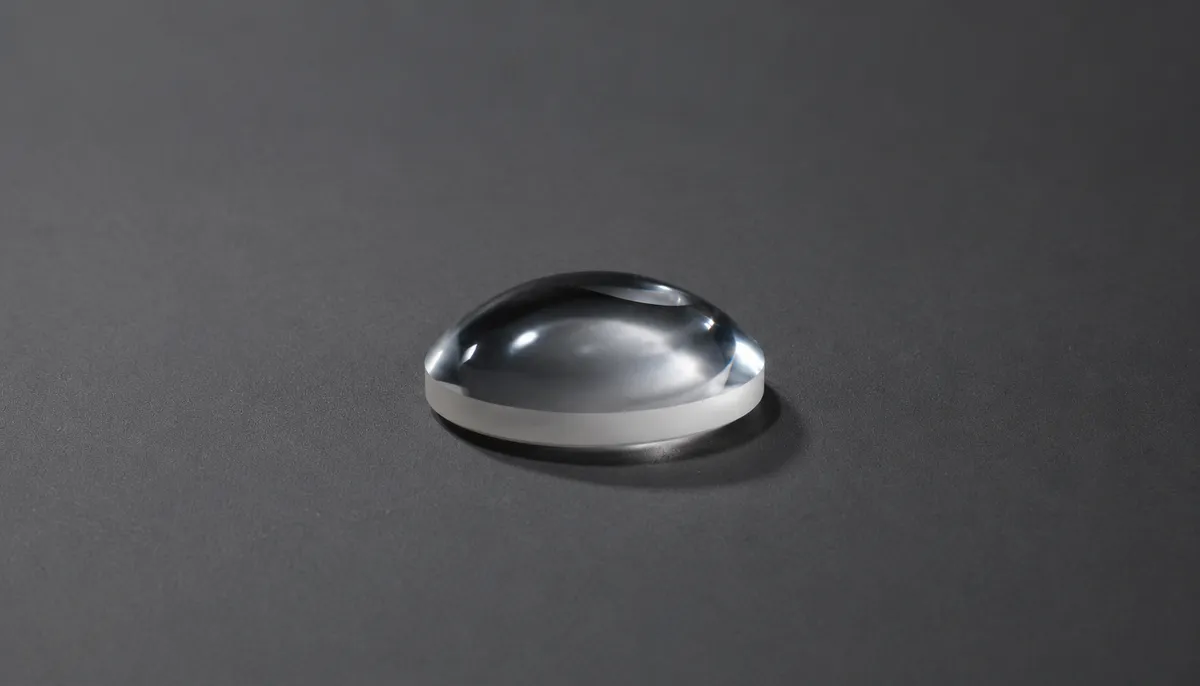

Plano Convex Lenses
One flat and one convex surface for positive focal length focusing and beam collimation.
Function: Positive Focal Length Focusing
Applications: Laser / Imaging
Plano Concave Lenses
One flat and one concave surface for beam expansion and negative focal length applications.
Function: Beam Expansion and Divergence
Applications: Laser Systems
Double Convex Lenses
Two convex surfaces providing shorter focal lengths for image formation and relay optics.
Function: Image Formation and Focusing
Applications: Optical Instruments
Double Concave Lenses
Two concave surfaces for negative optical power in beam-shaping and diverging systems.
Function: Negative Optical Power
Applications: Beam Control

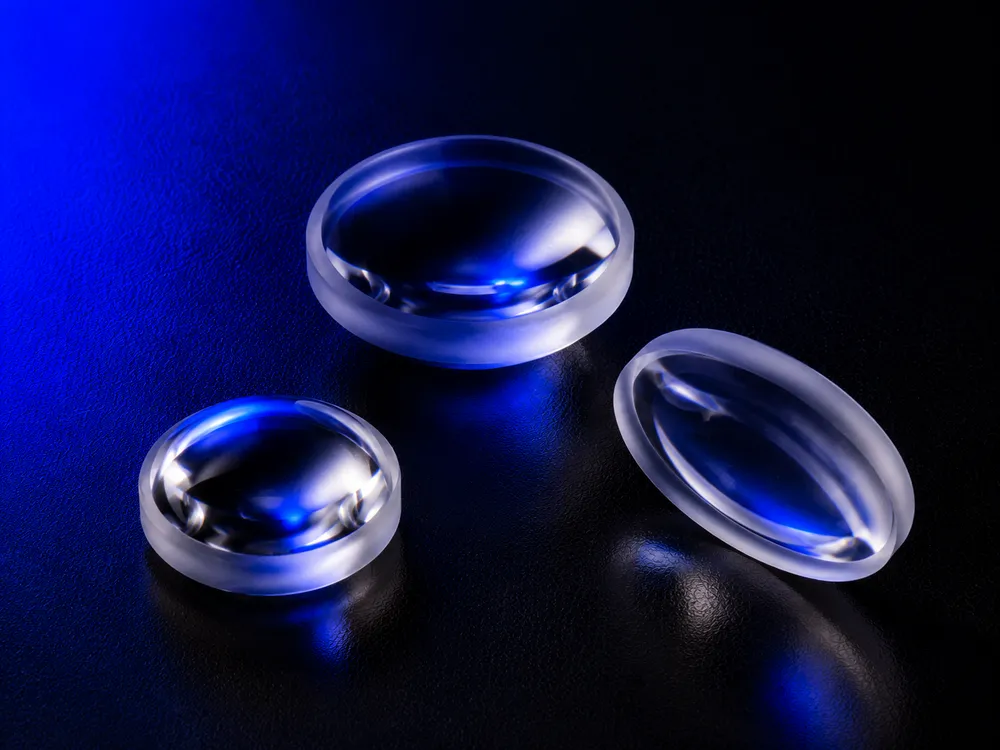

Aspheric Lenses
Non-spherical profile reducing spherical aberration for compact, high-performance optical designs.
Function: Aberration Reduction
Applications: Imaging / Laser
Achromatic Lenses
Cemented doublet design correcting chromatic aberration across a defined wavelength range.
Function: Chromatic Aberration Correction
Applications: Microscopy / Imaging
Cylindrical Lenses
Curved along a single axis for one-dimensional focusing and laser line generation.
Function: One-Dimensional Focusing
Applications: Laser Line Generation

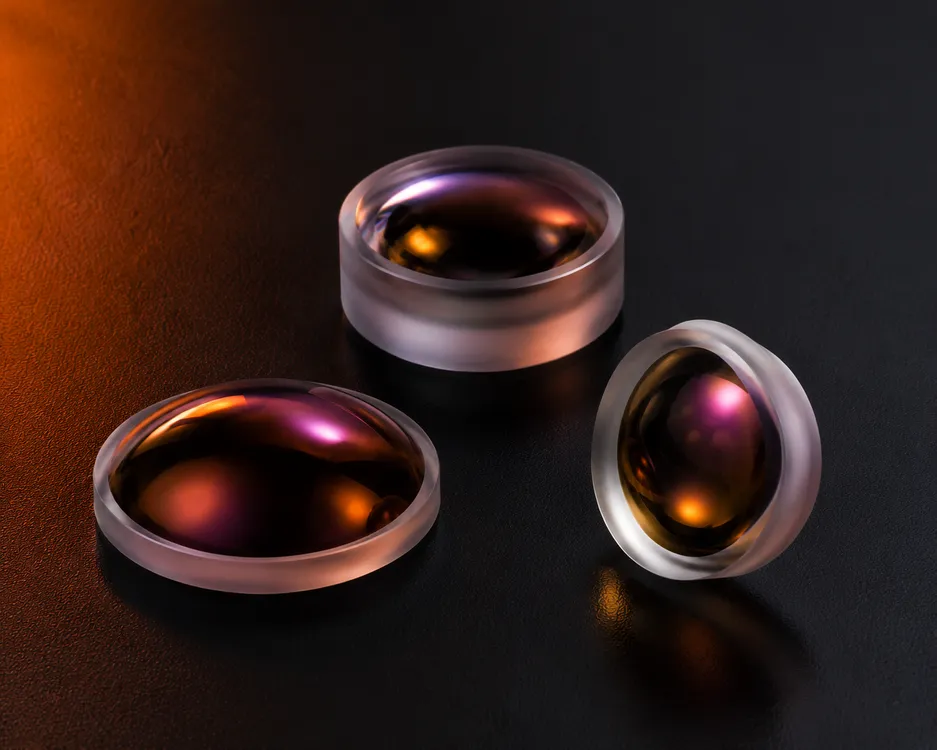

Infrared Lenses
MWIR and LWIR imaging lenses in infrared-grade substrates for thermal camera systems.
Function: MWIR–LWIR Imaging
Applications: Thermal Imaging
Optical Lens Type Comparison
Reference guide for selecting optical lens type based on function and application.
| Lens Type | Material | Optical Function | Typical Applications |
|---|---|---|---|
| Plano Convex | Optical Glass / Fused Silica | Positive focal length focusing | Laser collimation, imaging, condenser optics |
| Plano Concave | Optical Glass | Beam expansion and divergence | Laser beam expanders, negative focal length systems |
| Double Convex | Optical Glass | Image formation and focusing | Relay optics, projection systems, instruments |
| Double Concave | Optical Glass | Negative optical power | Beam control, diverging lens groups |
| Aspheric | Optical Glass / IR Materials | Aberration reduction | Compact imaging systems, laser diode collimation |
| Achromatic | Optical Glass | Chromatic aberration correction | Microscopy, machine vision, imaging optics |
| Cylindrical | Optical Glass / Fused Silica | One-dimensional focusing | Laser line generation, anamorphic optics |
| Infrared | ZnSe / ZnS / Germanium / Silicon | MWIR–LWIR imaging | Thermal cameras, FLIR systems, IR sensors |

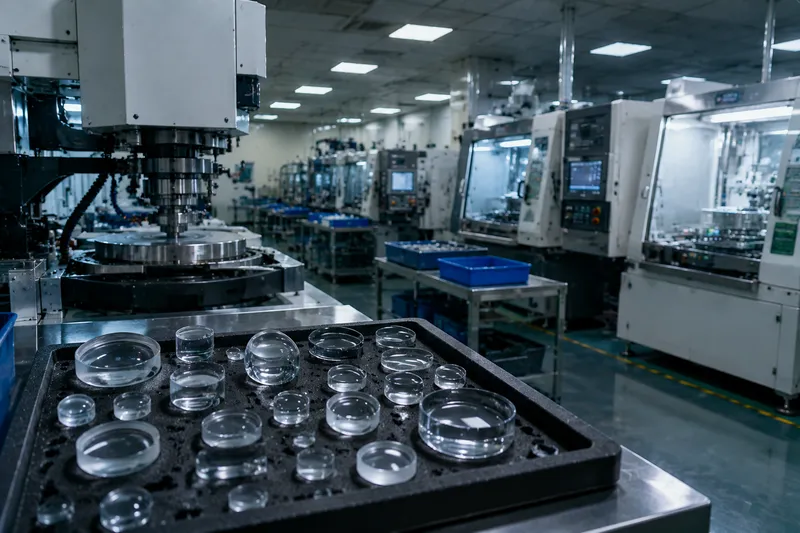

Custom Optical Lens Manufacturing Capability
All optical lenses are produced in-house. Polishing, coating and inspection are not outsourced.
Custom Lens Design
Lens geometry, focal length, aperture, radius of curvature and edge form manufactured to customer drawings, covering spherical and aspheric designs.
Precision Polishing
Surface quality from 60-40 scratch-dig to laser-grade 10-5, with surface irregularity and centration held to demanding optical tolerances.
Optical Coating
AR, broadband AR (BBAR), UV AR, NIR AR, IR AR and high-reflection coatings, with custom designs for specific wavelengths or multi-band requirements.
CNC Grinding
CNC generating and grinding across optical glass, fused silica and infrared crystal materials, matched to each lens geometry and substrate.
Centering and Inspection
Centration, dimensional, surface quality and coating performance verified before every shipment, with material certificates available on request.
Why Choose Chenyu Optics for Optical Lenses
Chenyu Optics is a direct optical lenses manufacturer. Production is handled in-house — material procurement, precision polishing, coating and inspection are not outsourced. Customers work directly with the manufacturer on specifications and delivery.
Applications of Optical Lenses
Laser Systems
Focusing, collimating and beam-shaping lenses in optical glass and fused silica for laser processing and delivery systems.
Machine Vision
Imaging lenses for industrial cameras, inspection modules and automated optical systems.
Microscopy
Achromatic and aspheric lenses for objective, condenser and relay optics in microscopy systems.
Medical Imaging
Precision lens components for endoscopy, diagnostic imaging and medical optical instruments.
Scientific Instruments
Optical lenses for spectrometers, laboratory instruments and research optical systems.
Infrared Imaging
ZnSe, ZnS, germanium and silicon lenses for thermal cameras and FLIR imaging systems.
Optical Lenses FAQ
What types of optical lenses can you manufacture?
Chenyu Optics manufactures plano convex, plano concave, double convex, double concave, aspheric, achromatic, cylindrical and infrared lenses. Lens geometries are produced in optical glass, fused silica and infrared materials, covering wavelengths from the UV through the LWIR.
Can you manufacture custom optical lenses?
Yes. Chenyu Optics manufactures optical lenses to customer drawings. Focal length, diameter, radius of curvature, thickness, surface quality, centration and coating can all be specified, from prototype quantities to repeat OEM orders.
What materials are available for optical lenses?
Available materials include optical glass (BK7, fused silica and other common substrates), and infrared materials such as ZnSe, ZnS, germanium and silicon for MWIR and LWIR lens applications.
What coating options are available?
Standard coatings include UV AR, visible AR, NIR AR, broadband AR (BBAR), IR AR and high-reflection coatings. Uncoated bare substrate is also available, and custom coating designs can be produced for specific wavelengths or multi-band requirements.
What optical tolerances can you achieve?
Diameter tolerances from ±0.1 mm to ±0.01 mm, surface quality from 60-40 scratch-dig to laser-grade 10-5, surface irregularity to λ/10 at 632.8 nm, and centration to within a few arcminutes, depending on lens geometry and material.
How can I request a quotation?
Send your lens type, material, focal length, dimensions, surface quality, coating and quantity to /contact/. Chenyu Optics will review the specifications and provide a production recommendation and quotation.
Need Custom Optical Lenses?
Send your drawings or specifications. Chenyu Optics provides precision optical lens manufacturing from prototype to production.
