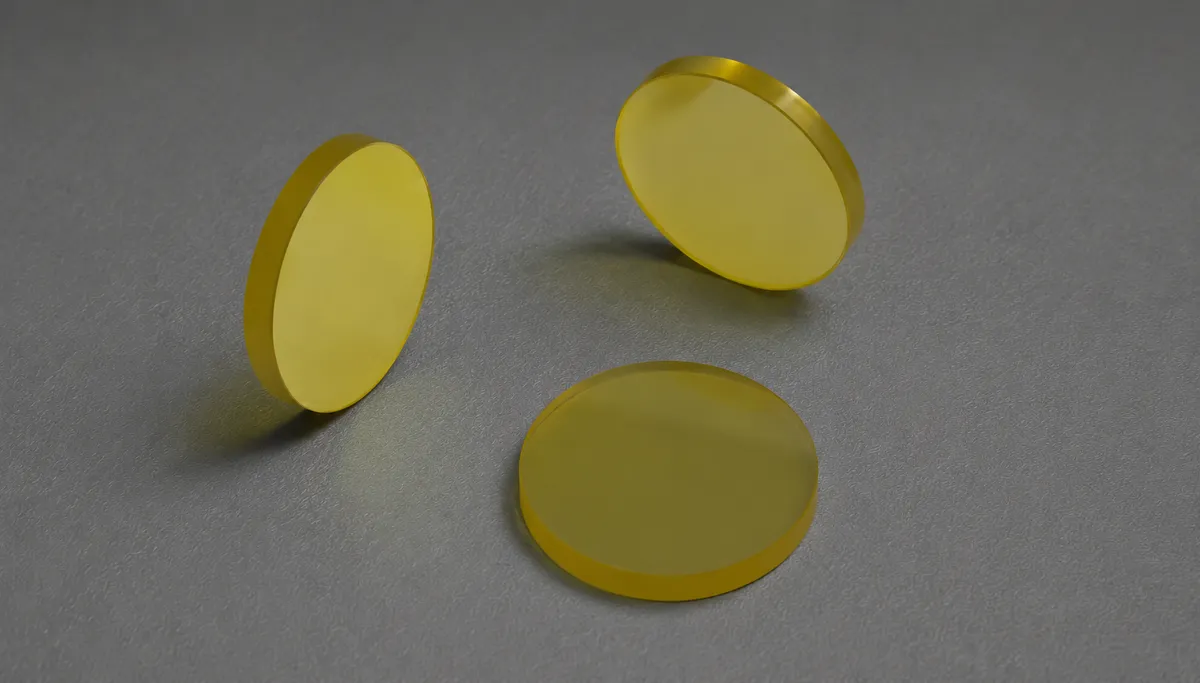

Zinc Sulfide Optical Window
Zinc Sulfide Optical Windows are precision optical windows offering material-specific optical transmission and environmental performance. Chenyu Optics manufactures Zinc Sulfide Optical Windows uncoated or with AR, broadband AR, UV AR, IR AR or DLC coating as applicable, with custom diameter, thickness, shape, surface quality, flatness and coating according to customer drawings.
Zinc Sulfide Optical Windows Overview
Zinc Sulfide Optical Windows are precision optical windows manufactured to customer drawings, providing material-specific optical transmission and environmental performance for a range of optical systems.
Chenyu Optics supplies Zinc Sulfide Optical Windows for laser systems, imaging, spectroscopy, infrared systems and scientific instruments, with material, coating and geometry selected according to the operating wavelength and application environment.
Custom diameter, thickness, shape, surface quality, flatness and coating are available to support prototype verification and repeat production according to customer drawings.
Key Advantages of Zinc Sulfide Optical Windows

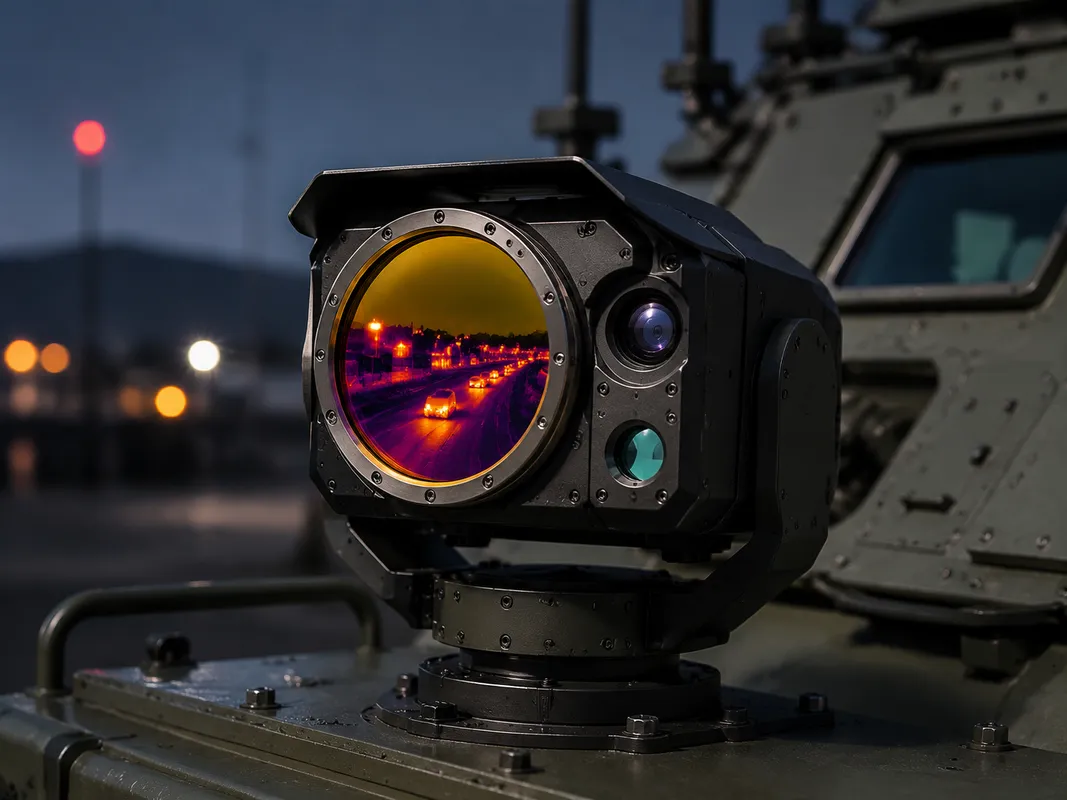

Laser, Imaging & Spectroscopy Systems
Zinc Sulfide Optical Windows are widely used in laser systems, imaging assemblies, spectroscopy instruments, infrared systems and scientific instruments requiring reliable optical transmission and environmental protection.
Typical Specifications of Zinc Sulfide Optical Windows
| Product Name | Zinc Sulfide Optical Windows |
|---|---|
| Product Type | Optical Window |
| Product Category | Precision Optical Window |
| Material | Zinc Sulfide (ZnS) |
| Coating Options | Uncoated, AR, broadband AR, UV AR, IR AR or DLC as applicable |
| Main Features | Material-specific optical transmission and environmental performance |
| Applications | Laser systems, imaging, spectroscopy, infrared and scientific instruments |
| Custom Options | Custom diameter, thickness, shape, surface quality, flatness and coating available |

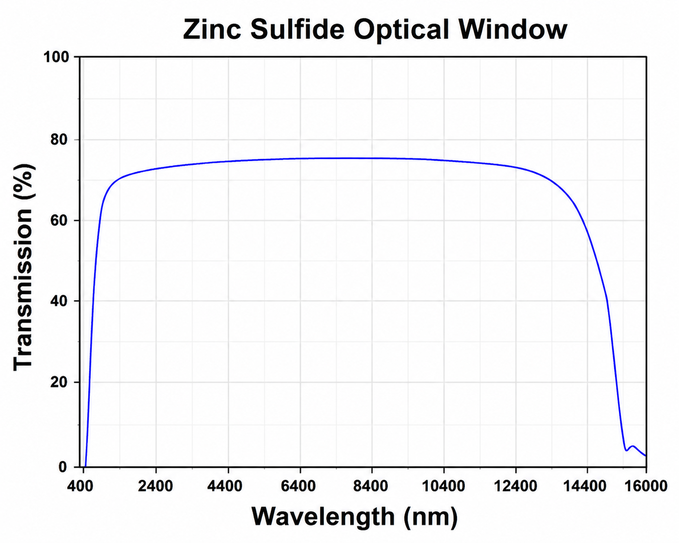

Optical Transmission Characteristics of Zinc Sulfide Optical Window
Why Choose Chenyu Optics for Zinc Sulfide Optical Windows
Chenyu Optics focuses on drawing-based precision optical window manufacturing for laser, imaging and infrared optical systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard Zinc Sulfide optical windows.
Manufacturing Capability for Zinc Sulfide Optical Windows
Precision Polishing
Controlled lapping and polishing for surface quality, flatness and low-scatter optical surfaces according to customer drawings.
Optical Coating
Uncoated, AR, broadband AR, UV AR, IR AR or DLC coating options selected according to wavelength and application requirements.
Inspection & Packaging
Dimensional inspection, surface review, optical performance checking and clean protective packaging before shipment.
Custom Manufacturing Options for Zinc Sulfide Optical Windows
Dimensions & Geometry
Custom diameter, thickness and shape can be manufactured according to customer drawings and optical system requirements.
Surface Quality
Custom surface quality and flatness can be selected according to imaging, laser or spectroscopy application requirements.
Coating Selection
Uncoated, AR, broadband AR, UV AR, IR AR or DLC coating can be specified according to the operating wavelength and application environment.
Zinc Sulfide Optical Window Material Comparison
| Zinc Sulfide (ZnS) | Germanium (Ge) | Zinc Selenide (ZnSe) | Sapphire | Calcium Fluoride (CaF₂) | |
|---|---|---|---|---|---|
| Transmission | Visible to LWIR (multispectral grade) | MWIR to LWIR | Visible to far IR | UV to MWIR | UV to MWIR |
| Visible Transmission | Standard grade transmits orange-red; multispectral grade transmits visible wavelengths | Opaque in visible wavelengths | Transmits visible red and infrared wavelengths | High visible transmission | High visible transmission |
| Mechanical Notes | Hard, low thermal expansion, good resistance to thermal shock | High density, good rigidity, brittle material | Softer material, requires careful handling | Very hard and chemically durable | Lower hardness, sensitive to thermal shock |
| Typical Use | Thermal imaging domes and windows, multispectral optics, IR sensor systems | Thermal imaging windows, LWIR optics, IR sensors | CO₂ laser optics, IR windows, multispectral optics | Protective windows, harsh environment optics | UV, visible, NIR and MWIR optical systems |
Applications of Zinc Sulfide Optical Windows
Laser Systems
Optical windows for laser sources and beam delivery systems.
Imaging
Windows for imaging assemblies requiring reliable optical transmission.
Spectroscopy
Windows and cell components for spectroscopic instruments.
Infrared
Optical windows for infrared sensing and imaging systems.
Scientific Instruments
Optical windows for laboratory instrumentation requiring reliable transmission and environmental protection.
Zinc Sulfide Optical Window FAQ
What is a Zinc Sulfide optical window?
A Zinc Sulfide optical window is a precision optical window offering material-specific optical transmission and environmental performance for laser, imaging, spectroscopy and infrared applications.
Can Zinc Sulfide optical window coatings be customized?
Yes. Coating options include uncoated, AR, broadband AR, UV AR, IR AR or DLC as applicable, selected according to wavelength and application requirements.
Can diameter, thickness and shape be customized?
Yes. Custom diameter, thickness, shape, surface quality and flatness are available according to customer drawings.
What applications commonly use Zinc Sulfide optical windows?
Common applications include laser systems, imaging, spectroscopy, infrared systems and scientific instruments.
What information should I provide for a quotation?
Please provide diameter or size, thickness, surface quality, flatness, coating requirement, quantity, operating wavelength and drawing if available.
Where can I learn more about infrared optical materials?
Additional infrared material information can be found from Edmund Optics.
Related Products for Zinc Sulfide Optical Window
Need Custom Zinc Sulfide Optical Windows?
Send us your drawing, wavelength range, size, thickness, coating requirements and quantity. Chenyu Optics will review the optical and mechanical specifications and provide a suitable Zinc Sulfide window manufacturing suggestion.
