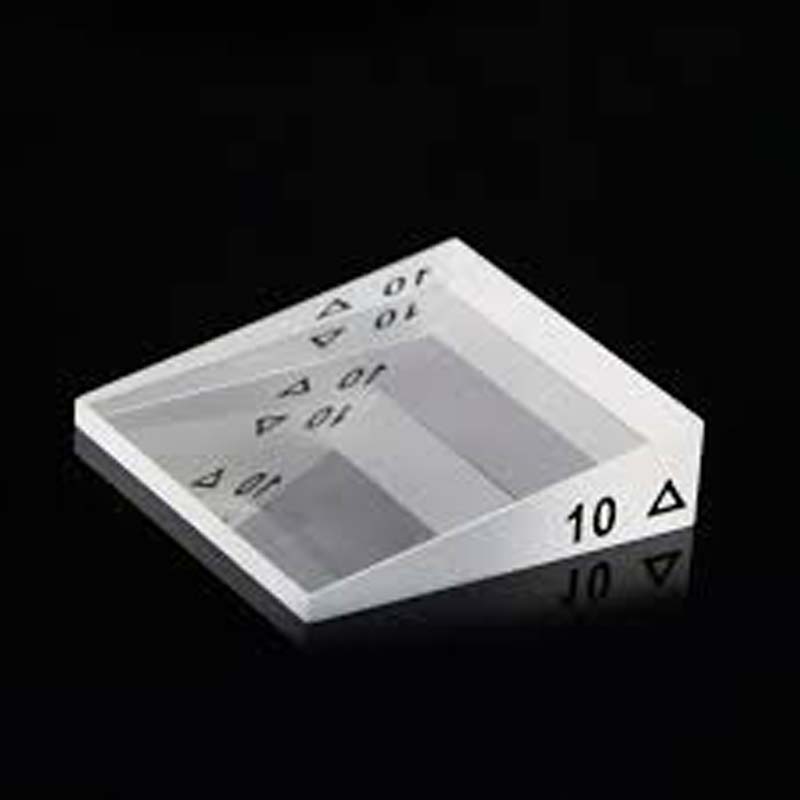

Wedge Prisms

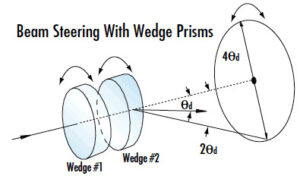

- Ideal for Beam Steering
- 0.5° – 15° Beam Deviation Options
- Available Uncoated or Anti-Reflection Coated
- Anamorphic Prism Pair Also Available
Wedge Prisms are optical components designed to deflect light by a specific angle. Made from high-quality materials like glass or optical crystals, they are commonly used in beam steering, optical alignment, and laser systems. Their precise angular displacement allows for accurate control of light paths in various applications, including imaging systems and spectrometers. Available in different sizes and angles, wedge prisms offer customizable solutions for advanced optical designs.
General Specification
| Note: | Specificy this is S1 & S2 power and irregularity, not the overall power of the wedge |
| Bevel: | Protective bevel as needed |
| Angle Tolerance (arcsec): | ±30 |
| Design Wavelength DWL (nm): | 632.8 |
| Image Orientation: | Beam Deviation |
| Substrate: | N-BK7 |
| Surface Quality: | 20-10 |
| Power (fringes) @ 632.8nm: | 0.5 |
| Irregularity (fringes) @ 632.8nm: | 0.2 |
| Coefficient of Thermal Expansion CTE (10-6/°C): | 7.1 |
