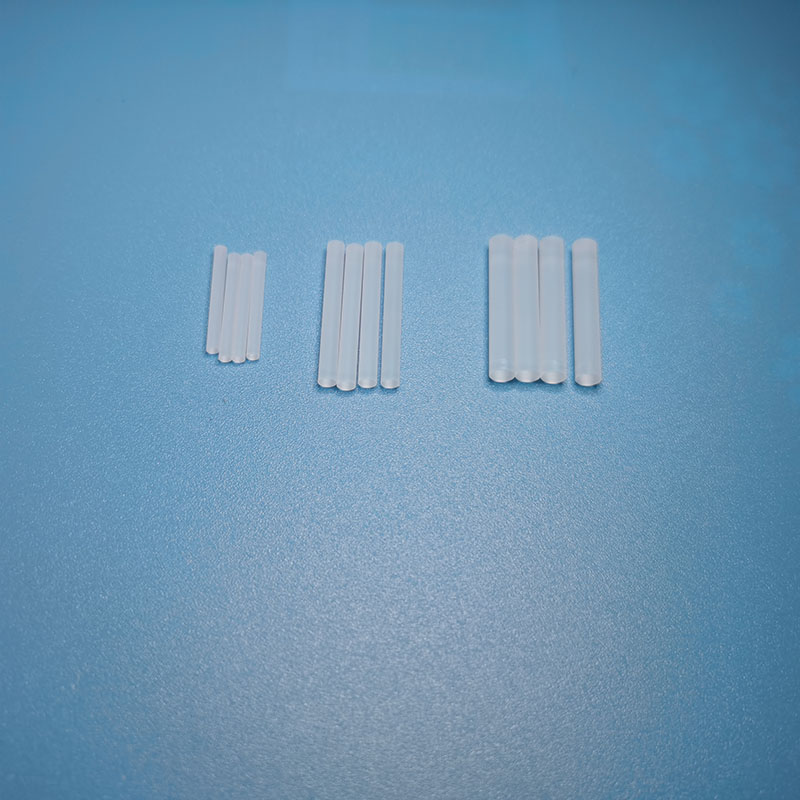

Optical Endoscope Rod Lens
Rod lens systems use special glass rods with optically finished ends, providing images with higher brightness, contrast and colour reproduction than conventional lenses.
- Precise materal
- Suitable for most medical devices
- Well high-resolution optical glass rod lenses
Specifications
| Weight | 1 |
|---|---|
| Logo/Custom Process | Hot stamping, 3D printing, Transfer printing, Digital printing, UV printing, Laser engraving, Thermal transfer, etc. |
| Model | Rod lens-001 |
| Brand | Chenyu |
| Customization | OEM, ODM, OBM |
| Warranty | 2 years |
| Name | Optical Rod Lens |
| Material | Quartz, BK7, K9 |
| Size | 2.7729 / 6.5546 / More |
| Length | 0.5–300 mm |
| Length Tolerance | ±0.02 mm |
| Transmission | > 90% |
| Application | Medical Endoscope |
| Bevel | 0.1–0.5 mm |
| Surface Quality | 20/10 — 80/50 |
| Flatness | 1/4 lambda |
Optical endoscope rod lenses are precision optical lens designed for medical and industrial endoscopy systems.
Also,the rod lenses are long, cylindrical elements that transmit images through a series of relay optics inside the endoscope.
Therefore, their unique geometry enables compact design, minimal light loss, and high-resolution image transfer over extended lengths.
Applications:
- Laparoscopy, arthroscopy, urology, ENT, and minimally invasive surgery.
- Inspection of machinery, turbines, pipelines, and aerospace components.
- For diagnostic and surgical applications in animal healthcare.
- For optical instruments requiring compact relay imaging systems.
Advantages of the Endoscope Rod Lens:
- High Transmission Efficiency
- Compact and Lightweight Design
- Superior Optical Quality
- Customizable Dimensions
Why choose chenyu Optical Endoscope Rod Lens?
- Premium Optical Materials
Chenyu manufactures rod lenses from high-quality optical materials , ensuring excellent durability and optical performance.
- Wide Customization Options
Chenyu offers extensive customization, catering to specific application requirements.
[su_custom_gallery source=”media: 3466,3467,3468,3469″ limit=”16″ link=”lightbox” width=”260″ height=”260″]
FAQS
[su_spoiler title=”What is a Endoscope Rod Lens?” style=”simple” icon=”plus-circle”]A rod lens is a type of optical lens. People also use it in rigid endoscopes, typically made from glass rods with polished ends. Also, it transmits images with high resolution and brightness through multiple lenses aligned in a series.[/su_spoiler]
[su_spoiler title=”What materials are endoscope rod lenses made of? ” style=”simple” icon=”plus-circle”]They are usually made of high-quality optical glass with anti-reflective coatings. Therefore, they can minimize light loss and ensure excellent image transmission.[/su_spoiler]
[su_spoiler title=”In which applications are endoscope rod lenses used? ” style=”simple” icon=”plus-circle”]Also,they are mainly used in medical rigid endoscopes (laparoscopy, arthroscopy, ENT, urology) and industrial borescopes for inspection of machinery, pipelines, and aerospace components.[/su_spoiler]
