UV-VIS Quartz Window
- Available Uncoated or with Broadband Anti-Reflection Coatings
- Ideal for Cost Sensitive Broadband Applications
- Circular and Square Sizes from 5mm to 100mm
- λ/4 or λ/10 UV Fused Silica Windows Also Available

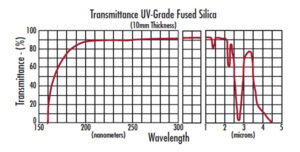

Our UV-VIS Quartz Windows are designed for high-performance optical applications, offering excellent transmission properties from the ultraviolet to the visible spectrum. Made from high-quality fused quartz, these windows provide durability and clarity, making them ideal for scientific, medical, and industrial uses. Custom sizes and shapes are available to meet specific needs. Enhance your optical systems with our reliable and precise Quartz Optical Windows.
| MATERIAL | UV FUSED SILICA | DIMENSION | +0.0 / – 0.1mm |
| FLATNESS | λ/4 @ 633nm | THICKNESS | ± 0.2mm |
| SURFACE QUALITY | 60/40 | PARALLELISM | < 30 ARC SECONDS |
| BEVEL | 0.2 x 45° | COATING | VISIBLE AR 350~700nm |
