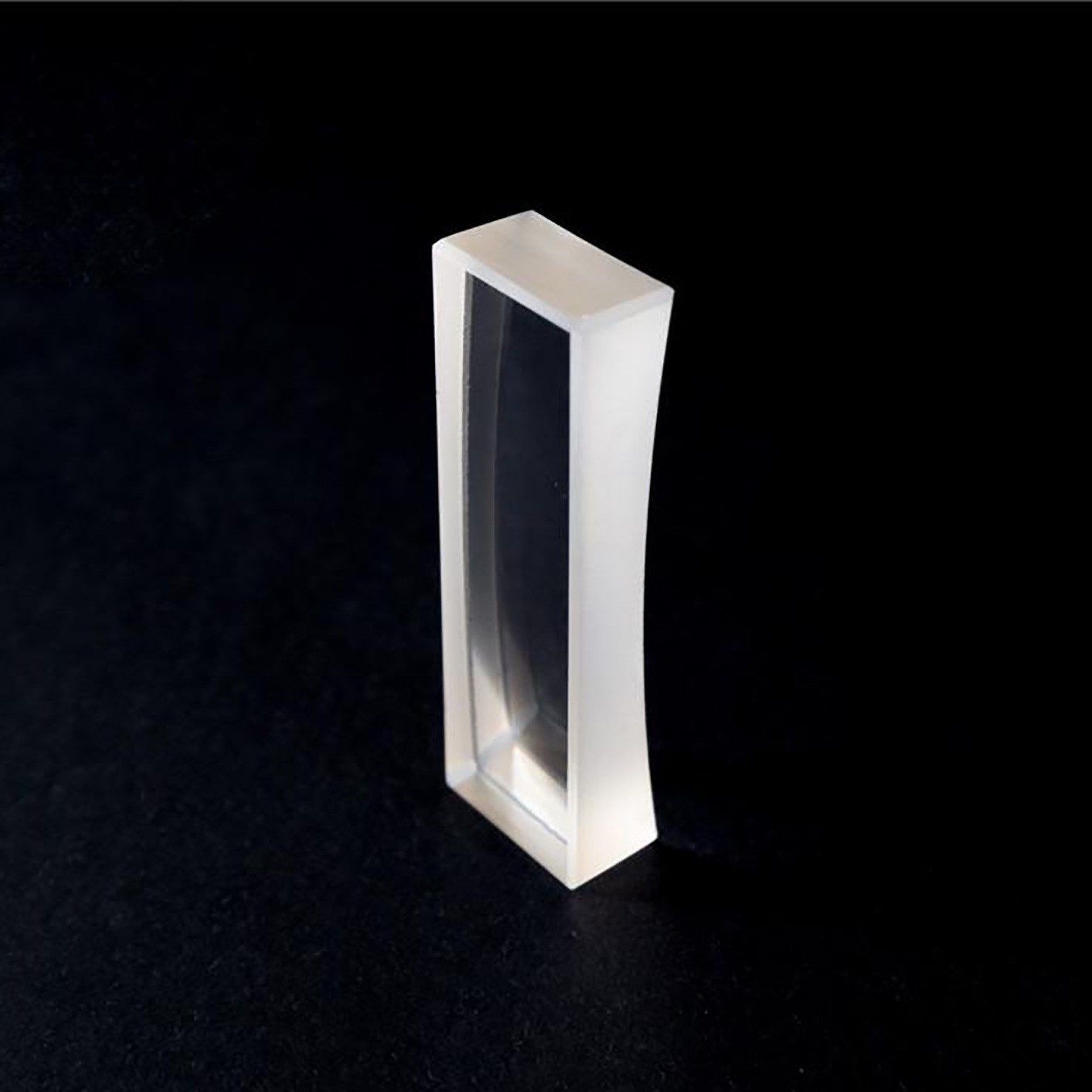

Plano-Concave Cylindrical Lens

UV Fused Silica Plano-Concave Cylindrical Lens

  • Design wavelength: 587.6nm
  • Size error: +0.0/-0.2mm
  • Center thickness error: ±0.2mm
  • Focal length error (EFL): ±2%
  • Surface finish: 40/20
Categories: , ,

What is a UV Fused Silica Plano-Concave Cylindrical Lens?

The UV Fused Silica Plano-Concave Cylindrical Lens is a precision optical component designed to expand, diverge, or shape light in one axis.

The cylindrical lens only affects light along a single dimension, making them ideal for applications requiring line focusing or beam shaping.

Unlike traditional lenses, cylindrical lenses only disperse or focus light in one direction.

It has excellent transmission performance and well environmental stability.

Advantages of UV Fused Silica Plano-Concave Cylindrical Lens



  • Broad Transmission Range: High transmission from DUV to NIR, suitable for most harsh environments.
  • Negative Focal Length in One Axis: Efficient divergence and beam shaping along a single direction.
  • High Laser Damage Threshold: Ideal for high-power UV and excimer laser systems.
  • Thermal Stability: Low thermal expansion coefficient ensures consistent optical performance under temperature fluctuations.
  • Optional AR Coatings: Available with anti-reflective coatings for UV wavelengths.

Applications



  • Laser Systems

Used for beam expansion, laser line shaping, and uniform illumination in excimer laser and UV laser processing.

  • Spectroscopy and Detection

Integrated into spectrographs and analytical instruments for precise light manipulation and enhanced sensitivity.

  • Imaging and Illumination

Applied in UV imaging setups and illumination systems to generate line-shaped beams for uniform field coverage.

  • Scientific and Medical Instruments

Suitable for UV microscopy, biomedical imaging, laser surgery systems, and advanced research equipment.



UV Fused Silica Plano-Concave Cylindrical Lenses are indispensable components in UV laser processing, spectroscopy.

Their unique optical design, combined with the exceptional properties of fused silica, ensures reliable performance, high precision, and long service life.

Chenyu produces high-quality cylindrical lenses. We offer customization services.

Therefore, if you have any requirements, please feel free to contact us at any time or check out more lens products.
