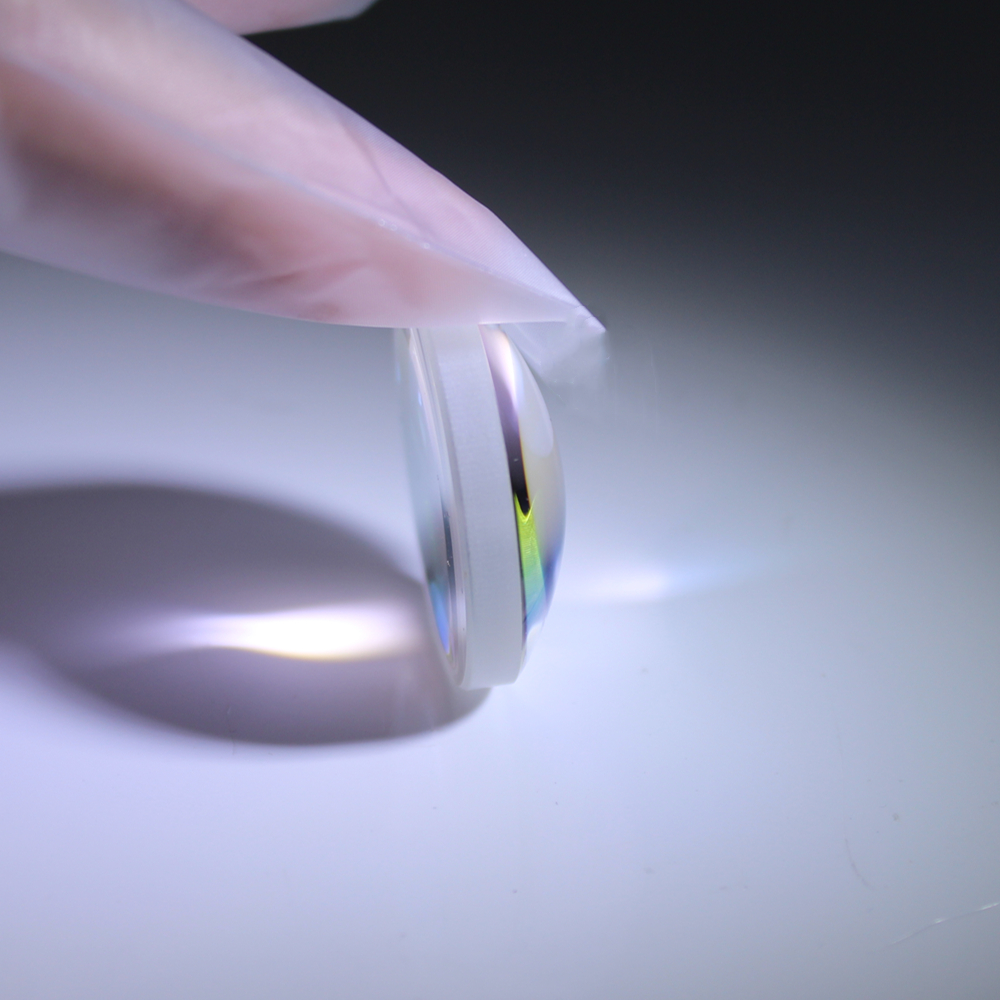

Aspherical Collimating Lens for Laser

Laser Aspherical Collimating Lens

  • Tolerance: +/-0.01mm
  • Surface Quality: 60/40
  • Surface Accuracy: 1lambda
  • Clear Aperature: 90%
Categories: ,

Specifications

Parameter Commercial Precision High Precision
Outer Diameter From 10mm to 200mm
Radius* From 6mm to plano
Diameter Tolerance* ±0.10mm ±0.05mm ±0.02mm
Thickness Tolerance* ±0.10mm ±0.05mm ±0.03mm
Transmission Centration* ≤3 arc minutes ≤2 arc minutes ≤1 arc minute
PV@633nm(μm)* 1μm 0.6μm 0.3μm
Slope Error@0.5mm spacing* N/A 0.05° 0.03°
Surface Quality (Scratch-Dig)*
(MIL-PRF-13830B) (ISO101110)		 60/40
5/2*0.4;L1*0.060		 20/10
5/2*0.1;L1*0.020		 10/5
5/2*0.05;L1*0.010

A laser aspherical collimating lens is a specialized optical component designed to transform divergent laser beams into parallel beams with high precision.

The lens feature a complex surface profile that effectively reduces spherical aberrations.

It is ideal for laser systems requiring high efficiency, minimal distortion, and excellent beam quality.

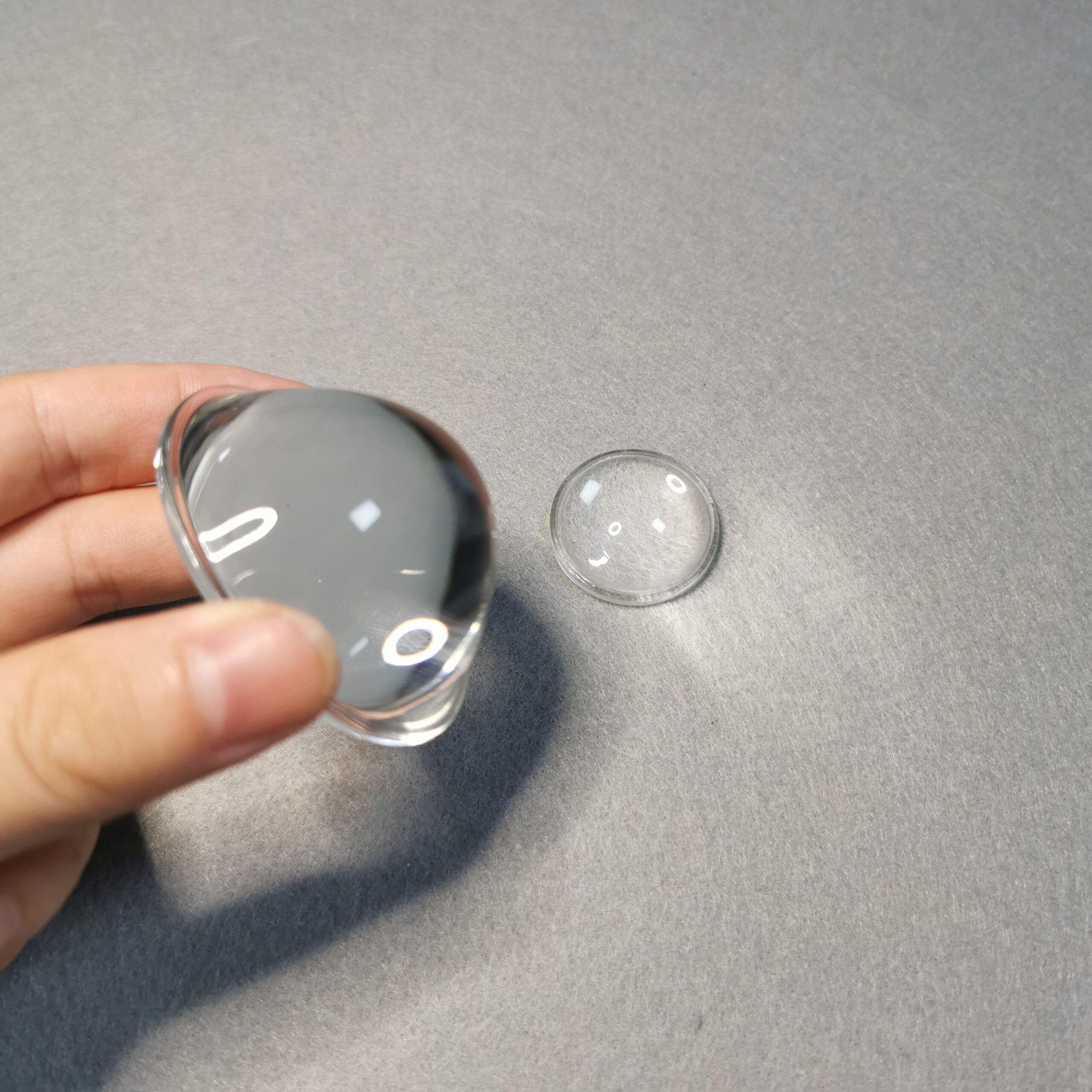

IMG_20200905_204420IMG_20200905_204420

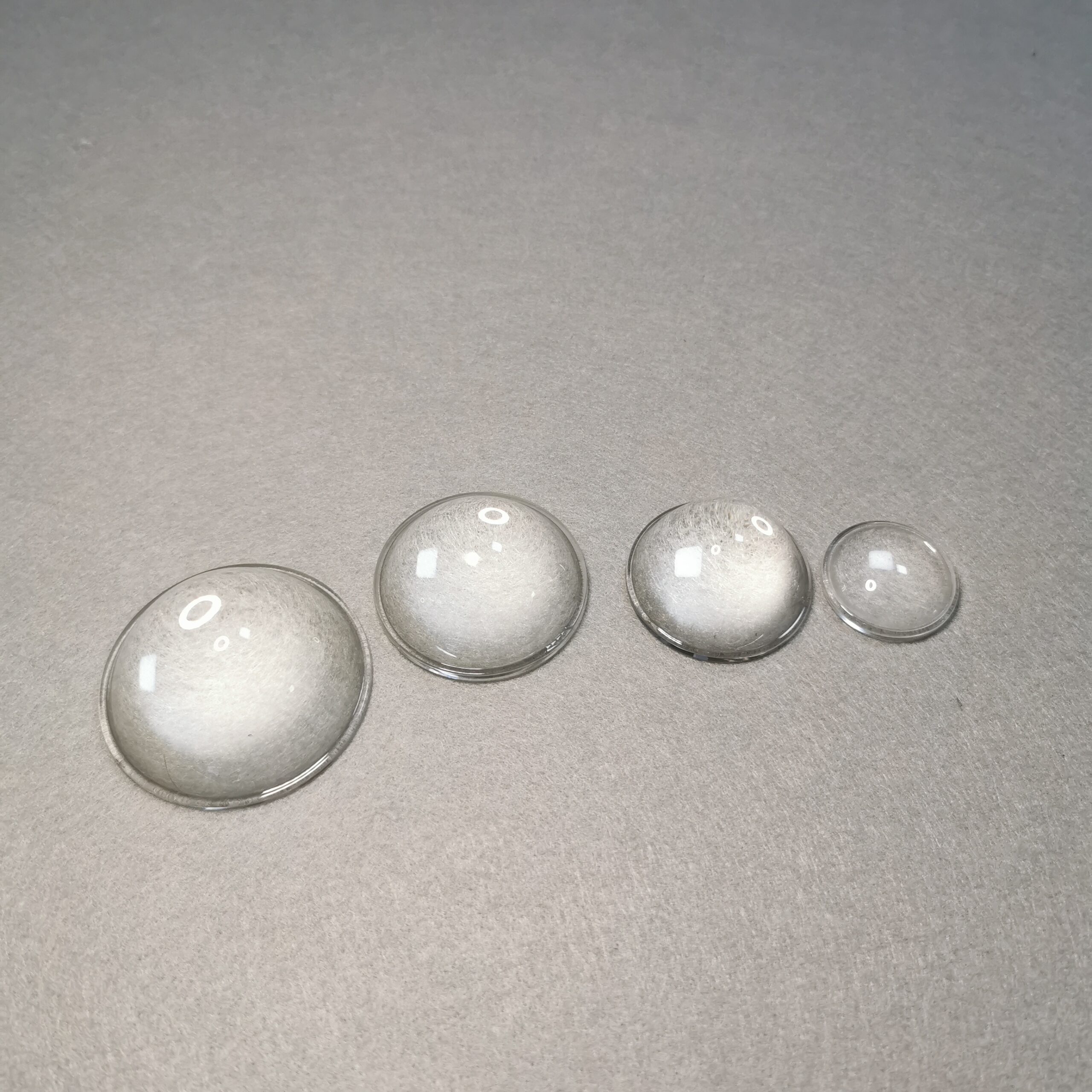

IMG_20200905_204257IMG_20200905_204257

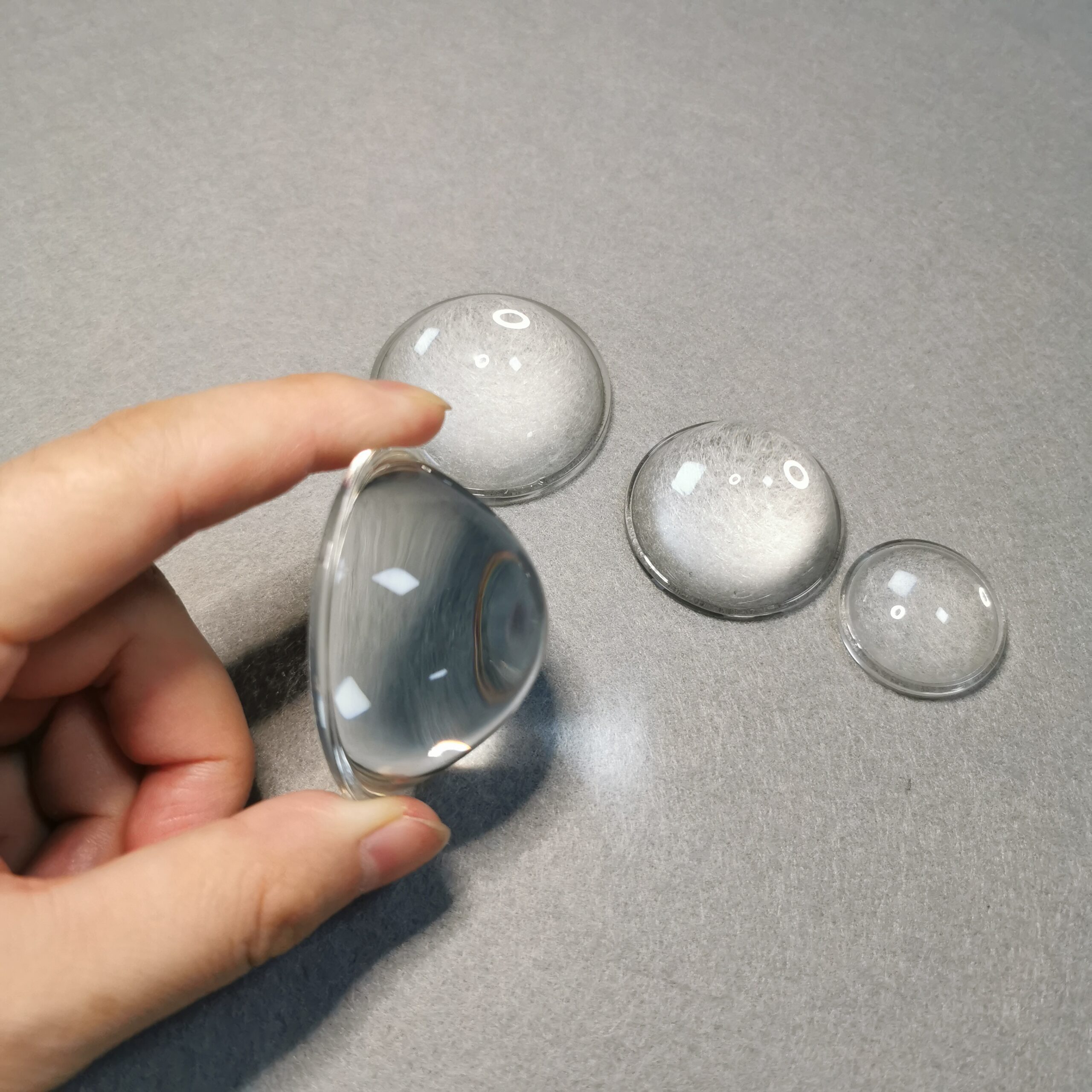

IMG_20200905_204359IMG_20200905_204359

Advantages

  • Ultimate alignment accuracy

The special contour of the aspherical surface can precisely compensate for the wavefront distortion of the laser beam.

  • Single-lens design, strong system integration

The lens can achieve high-precision alignment with a single lens, significantly simplifying the optical system structure.

And  it reduces the number of lenses by more than 50%.

  • Wide band adaptation

The lens can cover the mainstream laser wavelength bands from ultraviolet to infrared.

  • High damage threshold

Using high-purity optical substrates and advanced coating technology

  • Stable physical properties

The lens can adapt to complex environments such as industrial and outdoor settings.

Applications

  • Laser Diode Collimation
  • Fiber Optic Communication
  • Laser Measurement & Sensing
  • Medical Lasers
  • Industrial Lasers

The Aspherical collimating lens provides superior performance by minimizing aberrations, improving energy efficiency, and reducing system complexity.

Chenyu uses high-quality materials to produce the laser aspherical collimating lens for you.

If you are interested, please contact us.
