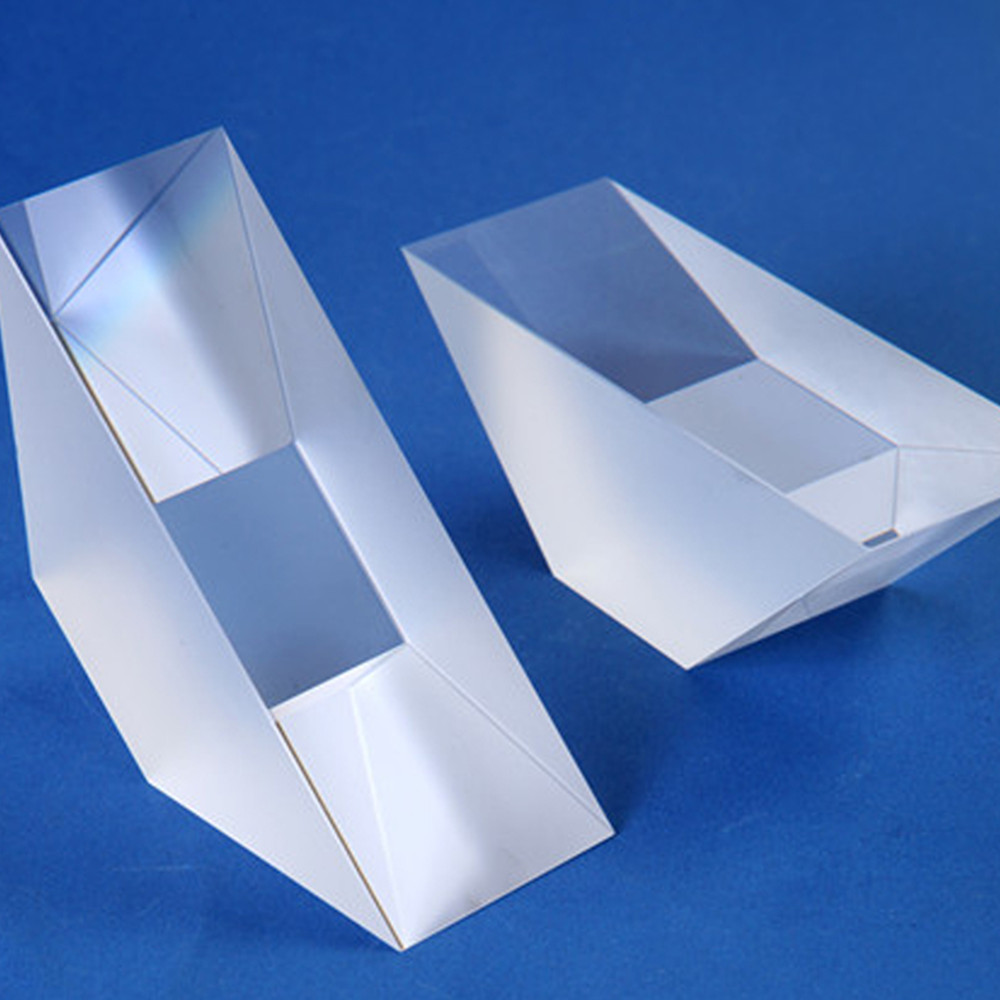

Dove Prism
- Substrate: N-BK7
- Power (fringes) @ 632.8nm: 0.50
-
Irregularity (fringes) @ 632.8nm: 0.25
What is the defination of a Dove Prism?
Dove Prism (Dove Optical Priss) is an optical component with unique imaging characteristics.
It is usually in the shape of a rectangular prism, and its interior is a modified structure of a right-angle prism.
After undergoing total reflection, the light can achieve the effect of image flipping or rotation.

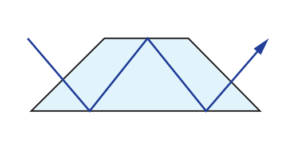

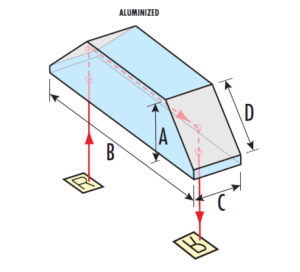

Chenyu Dove Prism is offered uncoated, with anti-reflection coated diagonal faces or with aluminized diagonal faces.
Main features
- By changing the direction of the prism, the image can be flipped 180 degrees.
- When the prism rotates around its optical axis, the output image will rotate at twice the angle. Therefore, people often use it in image applications.
- The dove prism has high transmittance. People often use it in the visible light to near-infrared range.
- It is well suitable for the integration of optical systems.
Working Principle of the Dove Prism

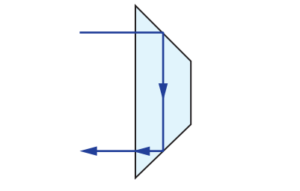

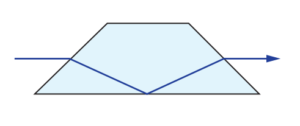

If light enters through an inclined surface and propagates along the longitudinal axis of the prism, it will reflect once from the bottom surface and then appear from the other short side.
Therefore, it will make an inverted image.
When the image passing through the prism is reversed, it does not undergo lateral transposition or deviation because there is only one reflection involved.
Applications:
- Optical imaging system
- Laser scanning and imaging
- Optical interferometer
- Optical Communication and Laser Experiment
- Astronomical optics and scientific imaging
Why choose Chenyu Dove Prism?
The angle tolerance of Chenyu’s prism is usually less than 5 minutes. This is defined as the allowable amount of angle variation.
Chenyu employs advanced production technologies, with a surface quality ranging from 60 to 40.
The production standards are stable, and we provide you with high-quality Dowey prisms.
We offer customization.
If you need it, please feel free to contact us. We have other types of prisms available for you to choose from. If you have any questions, you can consult our staff.
