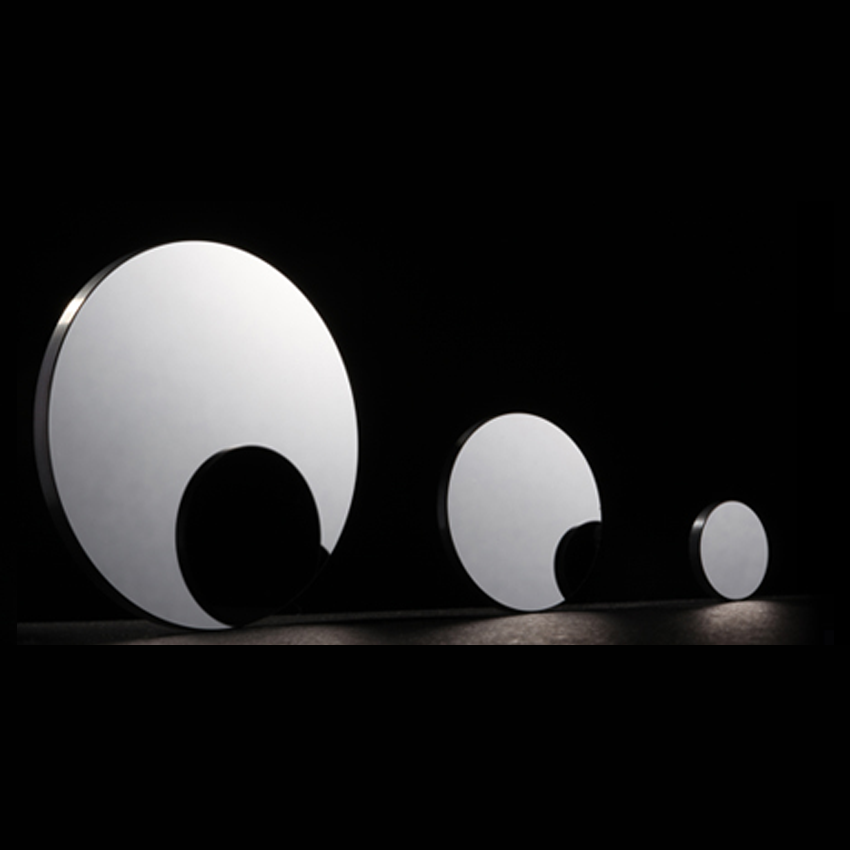

UV Silicon Window

UV-Grade Silicon Optical Window 100mm

  • <strong>Parallelism deviation:</strong> &lt;1 mm
  • Surface quality: 60/40
  • Diameter error: +0.0/-0.1 mm
  • Thickness tolerance: ±0.1 mm
  • Chamfering: Protective chamfer 0.2mm x 45°
Categories: ,

What is a UV silicon window?

The UV silicon window is usually used to protect the optical components from the affect of the environment. People often choose them in the ultraviolet band.

The Optical Window is made from high-purity silicon.It offers excellent transmission from the ultraviolet (200 nm) through the infrared (7 μm).

Therefore, it is an ideal choice in UV applications.

Key Features of UV silicon window

The following is the features of the silicon window:

  • Wide transmission range

  • High refractive index

  • Well thermal conductivity

  • Excellent mechanical strength and chemical resistance

  • Optional AR coating for UV



Applications of the pane:

  • Ultraviolet-infrared optical system:  It has obvious advantages in multi-band applications.
  • High-power laser system: People often choose the windows because it can withstand high-power laser beams.
  • Ultraviolet lithography and optical inspection:  People often choose them in UV applications.
  • Scientific research and precise measurement: Some devices like imaging systems.

Ultraviolet  fused quartz is highly suitable for applications that require deeper transmission of ultraviolet light than N-BK7.

Compared to N-BK7, ultraviolet fused quartz also has a lower refractive index, better uniformity, and a lower coefficient of thermal expansion at a given wavelength

Chenyu offers high-precision windows, which are used in various laser and industrial applications.

We also offer laser windows and infrared windows that have wavelength-specific coatings.

If you have any questions, please contact us at any time.
