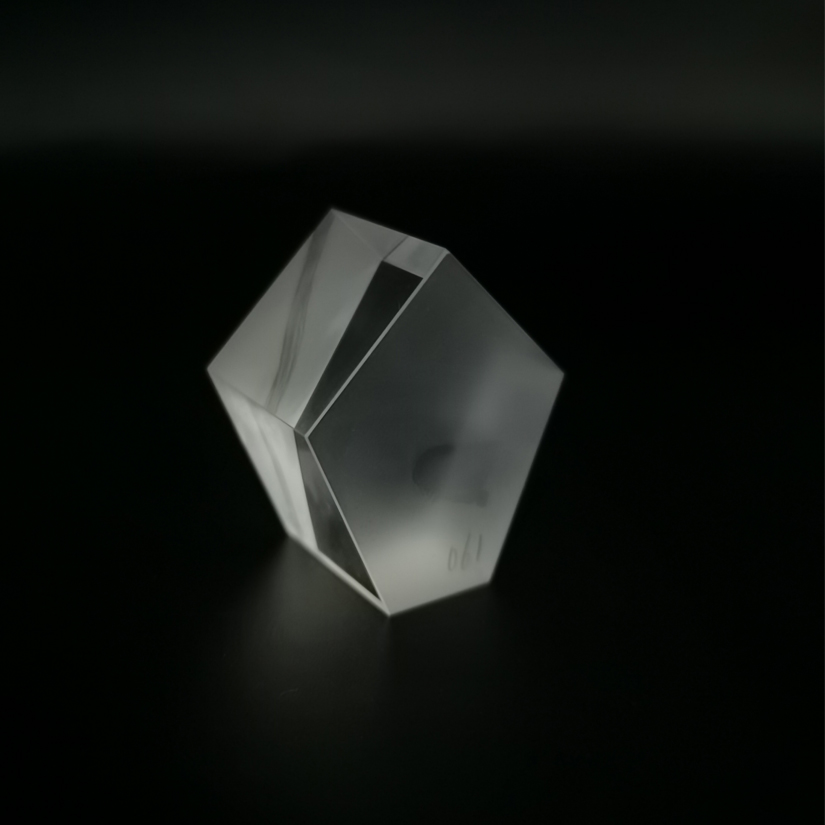

UV Fused Silica Penta Prism

  • Dimensional Tolerance (mm): ±0.10
  • Substrate: Fused Silica
  • Surface Quality: 20-10
  • Angle Tolerance (arcmin): ±1
  • Ray Deviation (°): 90
Categories: ,

What is a UV Fused Silica Penta Prism?

A UV Fused Silica Penta Prism is an optical prism made from fused silica.  It is used to deviate light by 90° without changing the image.

Its excellent ultraviolet (UV) transmission and thermal stability make it ideal for high-precision optical systems, UV laser applications, and scientific research.

The Chenyu UV fused silica penta prism is made of ultraviolet fused silica.

Also, it has a low thermal expansion rate and exhibits excellent transmission performance across the ultraviolet, visible light, and near-infrared spectral ranges.

Advantages of UV Fused Silica Penta Prisms

  • Wide UV and Visible Transparency for diverse optical applications.
  • Stable 90° Beam Deviation without image inversion.
  • High Thermal and Mechanical Stability, suitable for high-precision environments.
  • Customizable Sizes to meet clients’ requirments.
  • Durable and Long-Lasting under harsh laboratory and industrial conditions or other environments.

Applications

  • UV Laser Systems

People can use the prism to direct and align high-power UV laser beams while maintaining beam quality.

  • Optical Measurement and Alignment

Widely used in interferometers, precision surveying instruments, and laser alignment systems.

  • Scientific Research

Also, people can use it in labs. Beacuse it is good for research the beam of the light.

  • Imaging and Photonics

Applied in UV imaging systems, microscopy, and photonics instruments requiring high UV transparency.

  • Industrial and Semiconductor Applications

Guides UV light in photolithography, inspection, and semiconductor processing equipment.

UV Fused Silica Penta Prisms provide precise 90° light deviation with exceptional UV transparency, thermal stability, and optical quality.

Therefore, they are essential for UV laser systems, optical measurement, scientific research, and industrial photonics applications.

Chenyu supports the customization of penta prism products.  Therefore, if you have any needs, please feel free to contact us at any time.

Also, we will offer you high-quality prism products.  Please check out our other prism products.
