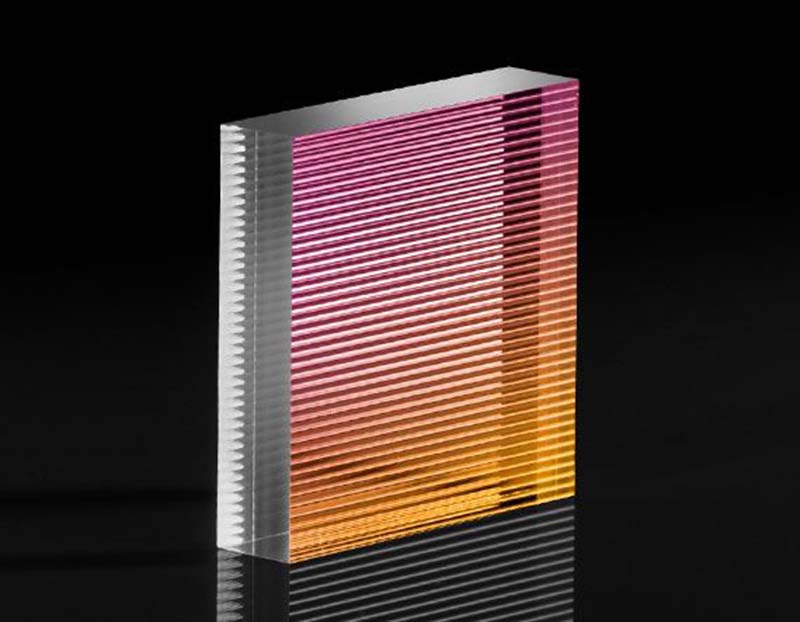

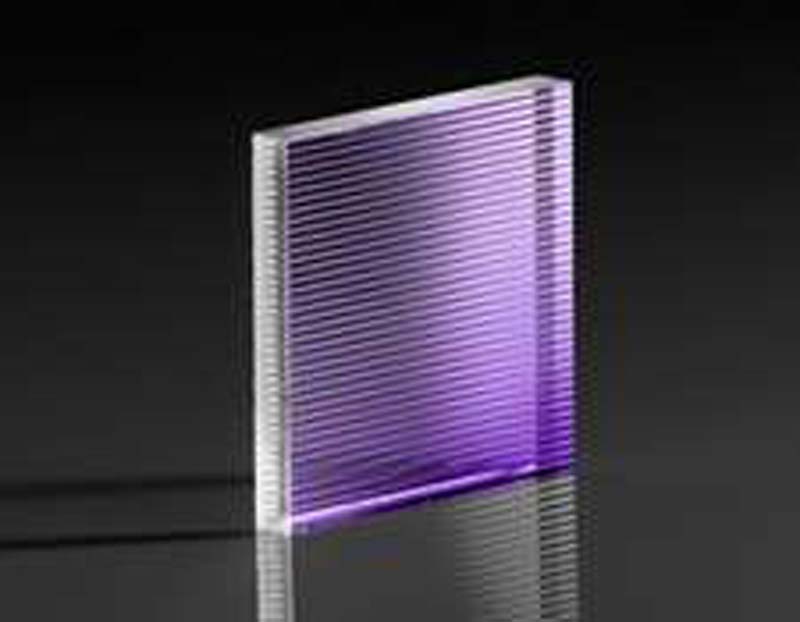

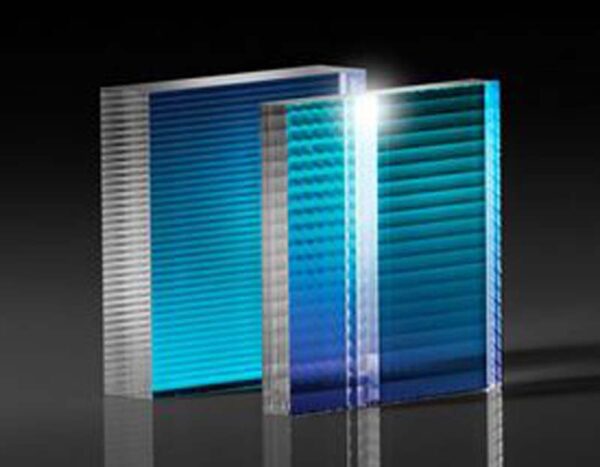

Square Microlens Arrays
Square microlens arrays are primarily used for beam homogenization and shaping. Their very high fill factor (up to 98%) essentially eliminates zero order hot spots in the illuminated field. A standard square microlens is 10mm x 10mm configuration, although we can provide custom sizes upon request. A variety of focal length and lens pitch options are also available.
Square Microlens Arrays are high-precision optical components designed for beam shaping, light homogenization, and imaging applications. Made from materials like fused silica or optical glass, they offer excellent transparency and durability. These arrays enhance optical system performance by improving light efficiency and reducing aberrations. Widely used in laser optics, imaging sensors, and display technologies, they ensure uniform light distribution. Custom sizes and coatings are available to meet specific application needs.

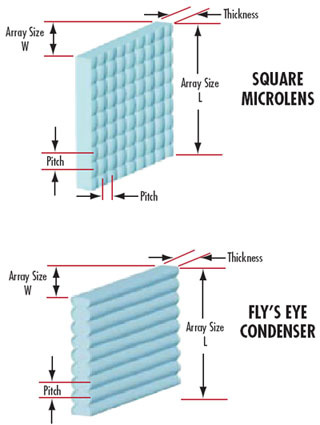

General Specification
| Lens Profile: | Spherical |
| Dimensional Tolerance (mm): | ±0.05 |
| Pitch Tolerance (μm): | ±0.25 |
| Thickness Tolerance (mm): | ±0.05 |
