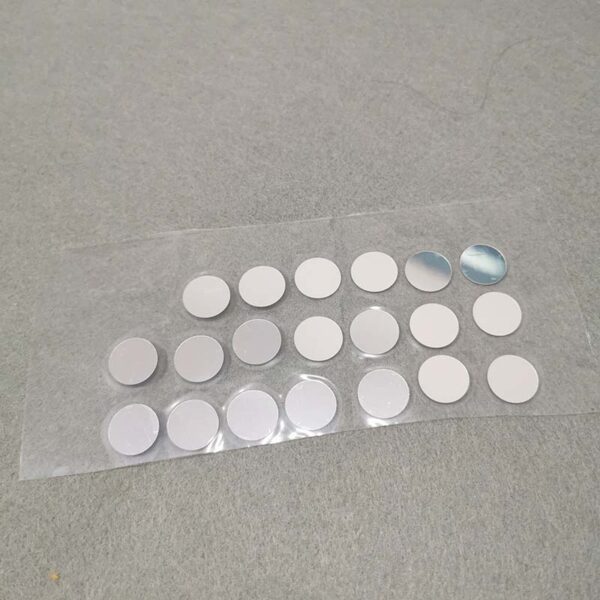

Shortpass Filters
- Broad Transmission and Rejection Ranges
- Sharp Slope for Effective Spectral Discrimination
- Combine with Longpass Filter for Custom Bandpass Ranges
Shortpass filters are optical filters that allow short-wavelength light to pass while blocking longer wavelengths. They are commonly used in fluorescence imaging, machine vision, and other optical applications. Made from high-quality optical materials, these filters provide precise wavelength control and high transmission. Custom sizes and coatings are available to meet specific requirements.
General Specification
| Note: | Arrow on part indicates filter coated surface. |
| Thickness Tolerance (mm): | ±0.1 |
| Physical Durability: | Adhesion per MIL-PRF-13830B, Section C.4.5.12 Moderate abrasion per MIL-PRF-13830B, Section C.4.5.11 Cleaning per MIL-C-48497A Section 4.5.4.2 |
| Angle of Incidence (°): | 0 |
| Optical Density OD (Average): | ≥4.0 |
| Coating: | Hard Coated |
| Surface Quality: | 60-40 |
| Transmission (%): | ≥91 |
| Transmitted Wavefront, RMS: | ≤λ/4 @ 633nm (prior to coating) |
| Cut-Off Tolerance (%): | ±1 |
| Environmental Durability: | Humidity per MIL-STD-810H, Section 507.6 Temperature per MIL-STD-810H, Section 501.7 and 502.7 |
