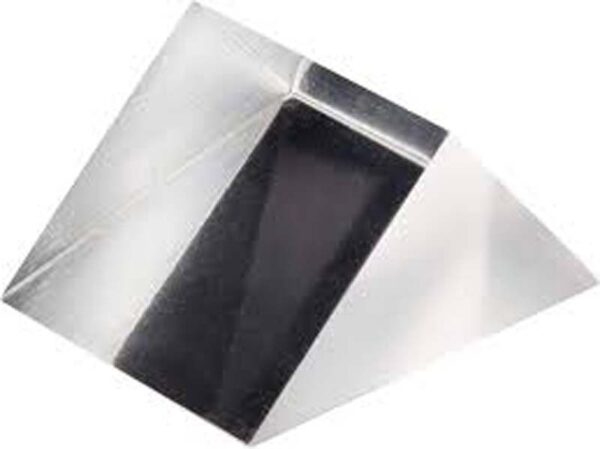

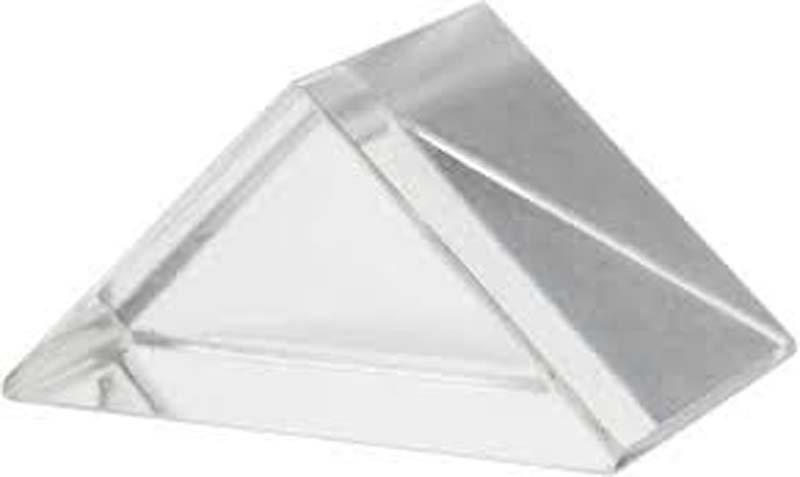

Right Angle Prisms
- Precision Fused Silica Substrates for Increased Thermal Stability
- Ideal for System Alignment
- Enhanced Aluminum, Protected Gold, and Protected Silver Coatings Available

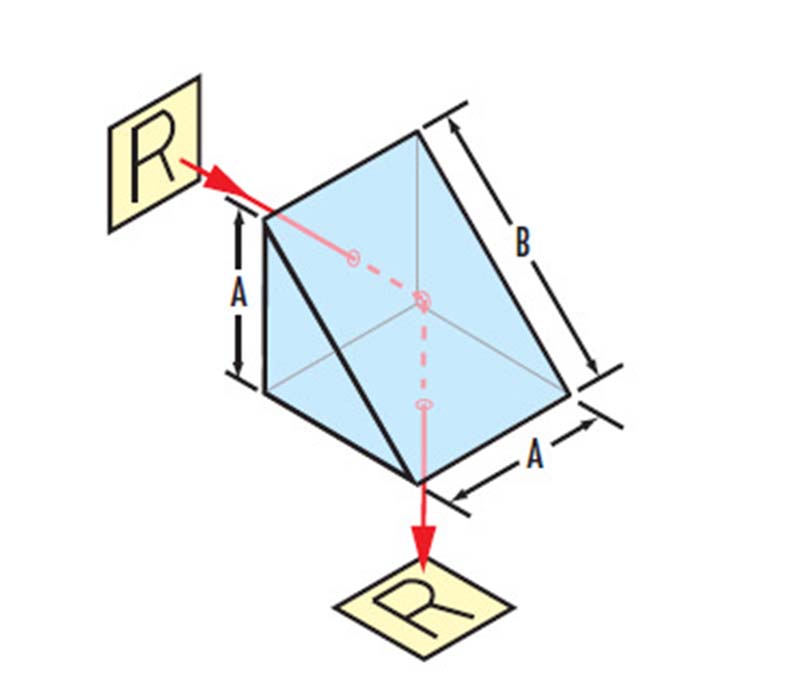

Right Angle Prisms are optical prisms with a 90-degree angle, commonly used for image reflection, beam deviation, and optical alignment. Made from materials like BK7, fused silica, or ZnSe, they offer high precision and durability for various optical applications. These prisms are widely used in laser systems, imaging devices, and optical instruments. Their high surface quality and tight angle tolerances ensure excellent performance in demanding environments.
General Specification
| Dimensional Tolerance (mm): | 0 |
| Bevel: | Protective bevel as needed |
| Surface Flatness (P-V): | λ/20 |
| Substrate: | Fused Silica (Corning 7980) |
| Surface Quality: | 20/10 |
| Coating Type: | Metal |
| Angle Tolerance (arcsec): | ±15 |
