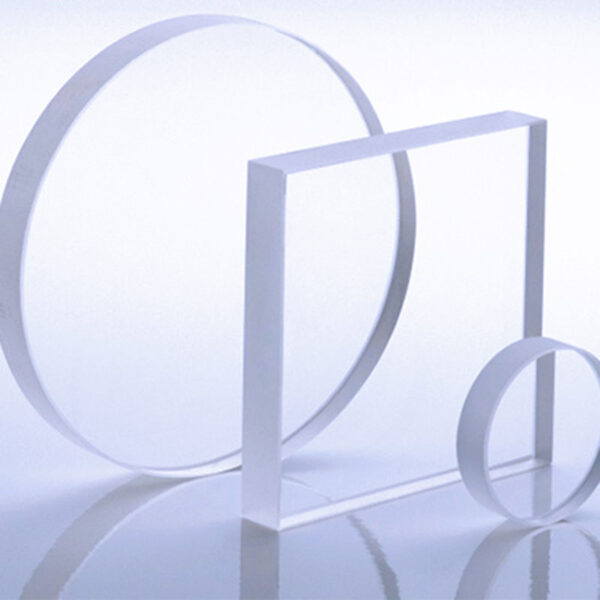

Calcium Fluoride Optical Windows
- Uncoated Windows for 180 nm to 8 µm
- AR-Coated Windows for 1.65 µm to 3 µm
- Ø1/2″ and Ø1″ Sizes Available
- Uncoated Windows Suitable for Excimer Laser

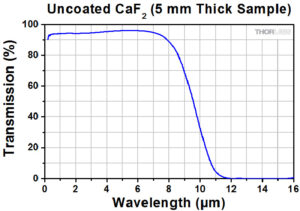

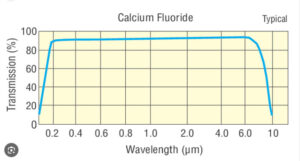

Calcium Fluoride Optical Windows are high-performance optical components known for their excellent transmission from ultraviolet (UV) to infrared (IR) wavelengths (180 nm – 8 μm). With low refractive index, high damage threshold, and exceptional resistance to thermal shock, CaF₂ windows are widely used in laser systems, spectroscopy, infrared imaging, and UV optics. These optical windows offer superior optical clarity and durability, making them ideal for demanding applications in aerospace, medical technology, and scientific research. Custom sizes and coatings are available to meet specific requirements.
General Specifications
| Diameter | 3mm to 280mm |
| Diameter Tol. | +0.00/-0.05mm |
| Surface Quality | 40-20 standard |
| Flatness | 1/10lambda |
| Wedge | <1 arcmin |
| Chamfer | 0.25mmx45degree |
| Focal Length Tol. | +/-1% |
| Angle Tolerance | <1 arcmin |
| Coating | Customer design |
