China Optical Component Manufacturer

Optical components are crucial elements used to control and manipulate light in optical systems. These components include lenses, prisms, optical windows, filters, reflectors, and beam splitters. Each component is specifically designed for a particular function. High-quality optical components are essential for achieving precise imaging, signal transmission, and laser processing.

Optical components are widely used in industries such as laser technology, biomedical imaging, industrial automation and scientific research, playing a crucial role in commercial and high-precision applications. They can be customized according to user requirements.

Showing 73–84 of 189 results

  • Echelle Grating

    Echelle Grating

    • Surface quality: 60/40
    • Effective aperture: 90%
    • Dimension tolerance: ± 0.5 mm
    • Efficiency: 45%-65%
    • Material: Float glass
    Read moreDone
  • Endoscope lens

    Endoscope lens

    • Filed of view: 70° / 80°
    • Barrel ∅: 1.55㎜
    • Effective focal length: 0.49㎜ / 0.59㎜
    • Back focal length(air): 1.60㎜
    Read moreDone
  • Rod Lens

    Endoscope Rod Lens

    • Length Tolerance (mm): +0/-0.1
    • Substrate: N-BK7
    • Wavelength Range (nm): 350 – 2200
    • Surface Quality: 40-20
    Read moreDone

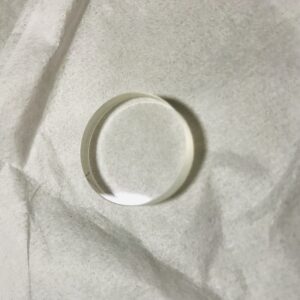

  • optical window

    Factory Custom K9 Optical Window Optical glass lens

    • Material: BK7/K9, Sapphire, ZnSe, ZnS, Ge, Si, etc..
    • Dimension: 1.0mm-460mm
    • Thickness: 0.1mm-30mm
    • Surface Accuracy: lambda/20
    • Tolerance: +/-0.01mm
    Read moreDone

  • Fiber Collimators

    Features

    The fiber collimator is designed for collimating radiation exiting from an optical fiber cable or used in reverse as a fiber coupler (fiber port) for coupling a beam into an optical fiber cable.

    • Focal lengths up to 20 mm
    • Choice of aspheres, monochromats, achromats and apochromats
    • Various AR coatings for UV – IR
    • Choice of fiber receptacles: FC PC or FC APC (standard), ST, LSA or mini AVIM®
    • Compact Ø 12 mm housing
    • Front connector accepts attachment optics
    • Nickel silver or amagnetic titanium
    Read moreDone

  • Fiber Connectors

    Features of good connector design:

    • Low insertion loss – should not exceed 0.75 dB
    • Typical insertion repeatability, the difference in insertion loss between one plugging and another, is 0.2 dB.
    • High return loss (low amounts of reflection at the interface) – should be higher than 20 dB
    • Ease of installation
    • Low cost
    • Reliability
    • Low environmental sensitivity
    • Ease of use
    Read moreDone

  • Fiber Splitters

    Advantages and disadvantages

    • The FBT splitter offers low cost, common materials (quartz substrate, stainless steel, fiber, hot dorm, GEL), and an adjustable splitting ratio. However, its losses are wavelength-dependent and it offers poor spectral uniformity, cannot ensure uniform spectroscopy, and is temperature sensitive.
    • PLC splitter: Losses are not sensitive to the wavelength, spectral uniformity is higher and it is more compact and has lower cost with greater degrees of splitting. However, device fabrication process is more complex.
    Read moreDone

  • Filter Coatings

    Accurate Optics has been a trusted partner in delivering Filter Coatings to a diverse range of industries

    – Medical and Life Sciences: Our coatings play a crucial role in medical imaging, diagnostic equipment, and fluorescence microscopy.

    – Astronomy and Aerospace: Precise coatings are vital for telescopes, cameras, and satellite systems.

    – Photography and Videography: Achieve stunning results with AR coatings on camera lenses and filters.

    – Industrial and Semiconductor: Ensure high-quality optical components for manufacturing and inspection systems.

    – Research and Development: Our custom coatings are used in various research projects, helping scientists push the boundaries of knowledge.

    Read moreDone

  • Flat Watch Glass

    • Ultra-thin and flat surface.
    • High transparency and durability.
    • Scratch-resistant and precise design.
    Read moreDone

  • Flat Windows

    Standard and precision quality laser windows made from high quality UVFS and N-BK7 optical materials. Laser Windows chapter includes uncoated windows with dia from 12.5 to 101.6 mm and thickness from 1 to 15 mm. Also we offer uncoated rectangular windows with aperture from 15 x 20 to 50.8 x 50.8 mm and thickness from 2 to 10 mm. Other specific material, size and anti-reflection (AR) coated windows are available under custom request. Most of the windows are available ex-stock for fast off-the-shelf delivery.

    Read moreDone

  • Fused silica optical window

    • Available Uncoated or BBAR Coated for UV, Visible, and NIR
    • Ideal for Imaging Applications
    • Circular and Rectangular Sizes from 5 to 200mm
    • 1λ or λ/10 UV Fused Silica Windows Also Available
    Read moreDone
  • Fused Silica Wedged Windows

    Fused Silica Wedged Windows

    • Thickness (mm): 3.00 ±0.20
    • Surface Quality: 20-10
    • Substrate: Fused Silica
    Read moreDone
