Custom BK7 Laser Reflector Mirror
- Material: BK7
- Aperture: 90%
- Surface Quality: 20/10 — 80/50
- Tolerance: 0.05
China Optical Reflector Mirror Manufacturer
Optical reflector mirror, as the core fundamental component of an optical system, achieve efficient reflection, redirection and focusing of light through the reflective coating on the substrate surface.
They serve as the key carrier for constructing the optical path and controlling the propagation path of light. Common materials include BK7 glass , quartz glass , sapphire , etc.
Showing all 6 results
-
-
Custom Optical Concave Mirror
- Thickness: 1.00mm
- Surface Accuracy: 60/40
- Surface Quality: lambda/10
- Tolerance: +/-0.01
-
Custom Right Angle Mirror
- Dimensional Tolerance (mm): ±0.1
- Angle Tolerance (arcmin): ±2
- Power (fringes) @ 632.8nm: 1.25
-
Substrate: N-BK7
-
Custom Si Silicon reflector Mirror
- With standing high power density.
- Film is solid, resistant to wipe
- Double-side film,the filterability can reach 99%.
-

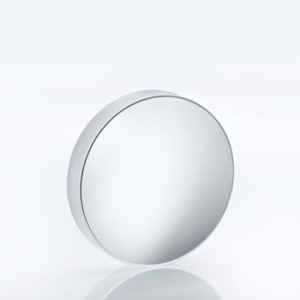

Precision Spherical Mirrors
What are Spherical Mirrors? Precision spherical mirrors are high-quality optical reflectors with a spherical surface profile, designed to accurately reflect and focus light in advanced optical systems. Manufactured with strict surface accuracy and coating requirements, they provide excellent performance. Common types of the spherical mirrors Type Features Effect on Light Applications Concave Mirror Mirror surface…
-
Precision Ultraviolet Optical Mirror
-
- Achieves maximum reflectivity at 13.5 nm
- Designed for extreme ultraviolet beam steering and harmonic separation
- Available in 5° and 45° incidence angles
- UV-Enhanced Aluminum: Ravg > 90% for 250 – 450 nm
-
