Quartz Rod Lenses
- High Light Transmission & Imaging Clarity
- Wide Material Options for Multi-Spectrum Use
- Customizable Dimensions & End Finishes
- High Surface Quality & Tight Tolerance
- Versatile Applications
- OEM & Fast Delivery Support

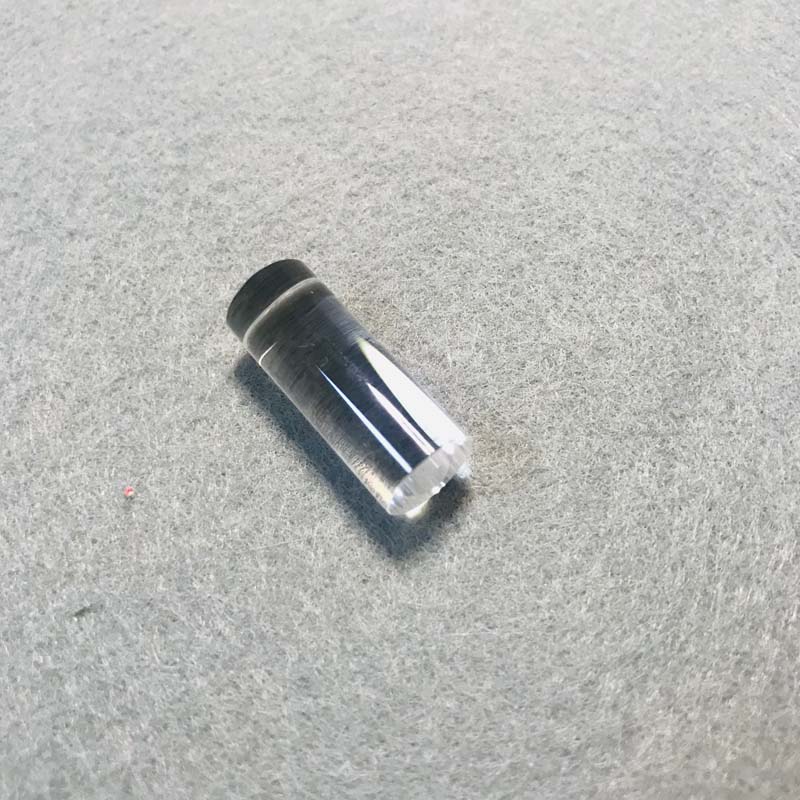

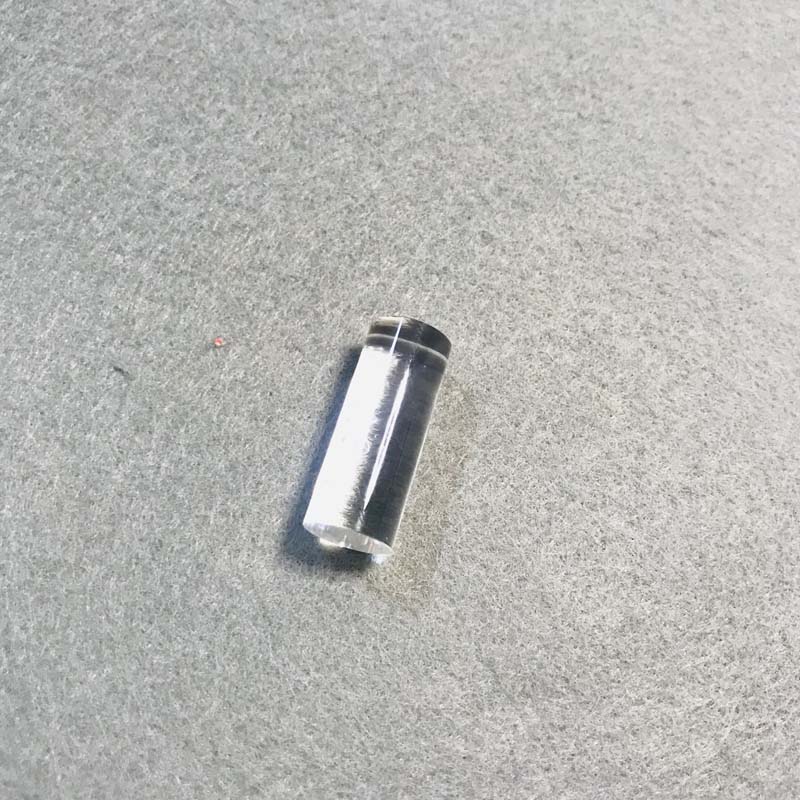

Quartz rod lenses are precision cylindrical optical components made from high-purity fused silica (quartz), offering exceptional UV to IR transmission, thermal stability, and durability. These rod lenses are ideal for high-power laser systems, medical imaging, and UV-sensitive optical applications.
Key Features:
-
Material: High purity fused silica (UV-grade quartz)
-
Diameter Range: 1.0 mm – 20.0 mm (customizable)
-
Length: Available per customer specification
-
Surface Quality: 40-20 or better
-
End Finish: Ground or polished; plano or angled ends optional
-
Wavelength Range: 185 nm – 2100 nm (UV to IR)
Advantages:
-
Excellent optical transmission from deep UV to near-IR
-
Low thermal expansion and high thermal resistance
-
High damage threshold for laser applications
-
Ideal for imaging, beam shaping, and endoscopy systems
-
OEM & custom design support available
As a professional quartz rod lens supplier, we provide precision-crafted optical rod lenses for demanding scientific, medical, and industrial applications.
