High Transmission in the 2–16 µm Range for IR Imaging and Sensing
- High Infrared Transmission
- Excellent Surface Quality
- Durable & Chemically Stable
- Custom Sizes & Coatings Available

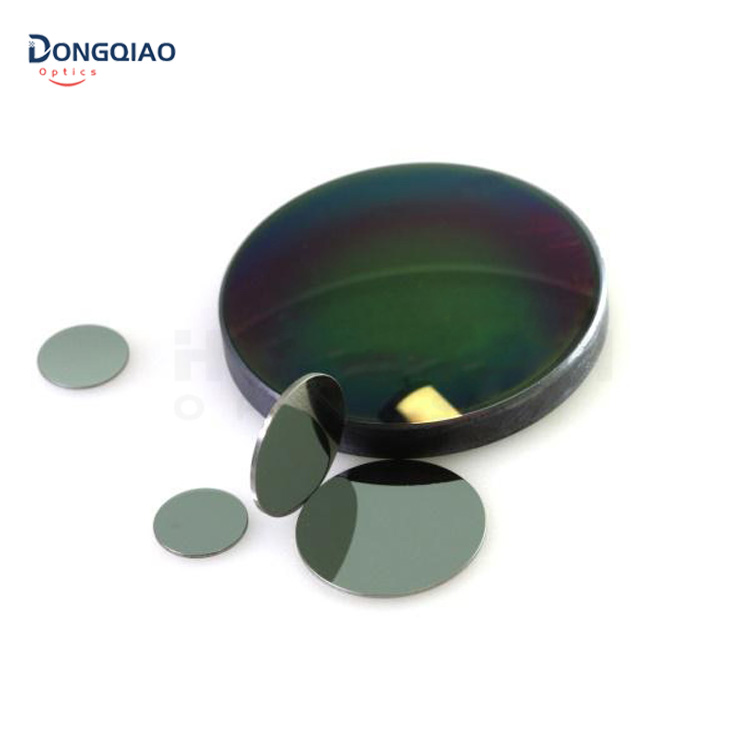

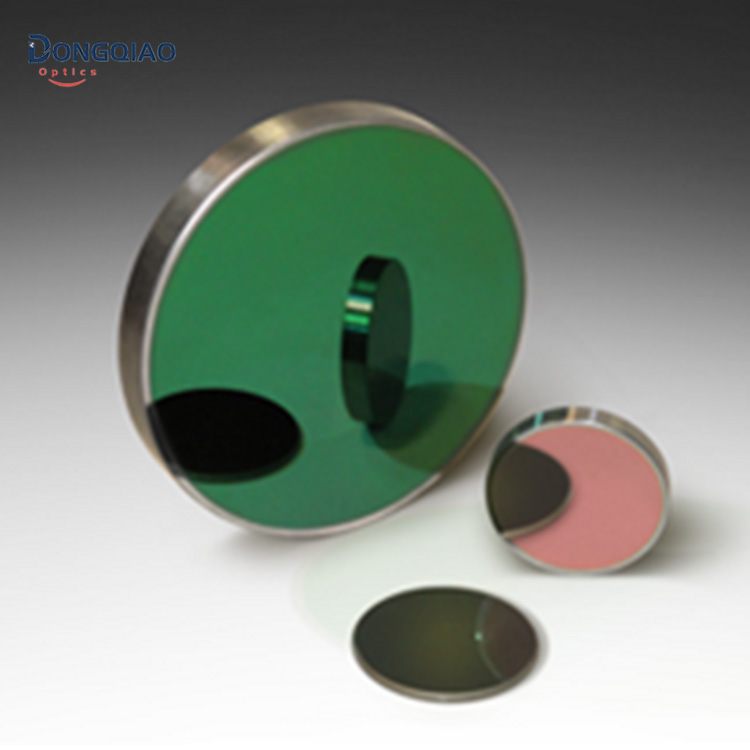

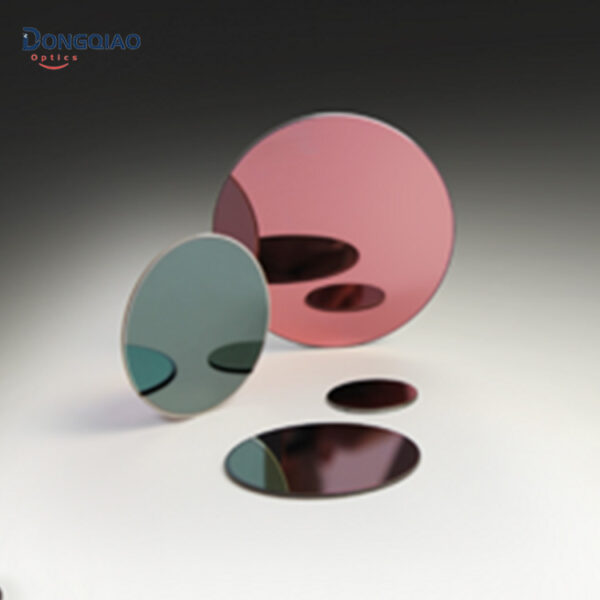

Our IR Germanium Windows are precision-crafted optical components ideal for infrared applications in the 2–16 μm spectral range. Featuring exceptional transmittance in mid- to long-wave infrared (MWIR to LWIR) bands, they are widely used in thermal imaging, FLIR systems, gas detection, infrared spectroscopy, and military-grade vision systems.
Typical Applications
-
Thermal Imaging Devices
-
Medical IR Diagnostic Systems
-
Gas & Flame Detection Instruments
-
IR Lidar and Remote Sensing
-
Security and Surveillance Optics
-
IR Windows for Harsh Environments
General Specification
| Material | Germanium (Ge) |
| Diameter Range | 5 mm – 100 mm (custom sizes available) |
| Thickness | 0.5 mm – 10 mm |
| Surface Quality | 40-20 (MIL-PRF standard) |
| Transmission Range | 2 μm – 16 μm |
| Refractive Index | ~4.0 at 10.6 μm |
| Coating Options | Uncoated / AR Coating (3–5 μm or 8–12 μm) |
| Density | 5.33 g/cm³ |
| Hardness (Knoop) | 780 |
