CaF₂ Infrared Transmission Windows
Substrate：Calcium Fluoride（CaF₂）
Wavelength Range：130nm-10um
Dia. Tolerance：+0.0/-0.1mm
Thickness Tolerance：±0.1mm
Bevels：0.35mm

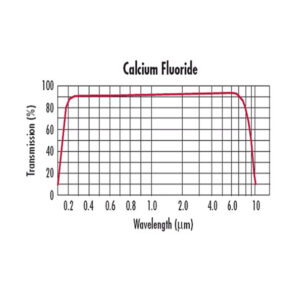

CaF₂ Infrared Transmission Windows are high-performance optical components made from calcium fluoride (CaF₂), offering excellent infrared (IR) transmission from 0.13µm to 10µm. These windows feature low absorption, high damage threshold, and superior resistance to thermal shock, making them ideal for IR spectroscopy, thermal imaging, and laser applications. Their durability and chemical stability also make them suitable for harsh environments.
|
Diameter |
0.2-300mm |
|
Thickness |
0.1-100mm |
|
Dimension tolerance |
+/-0.02mm |
|
Surface quality (scratch & dig) |
20/10 or better |
|
Clear aperture |
>90% |
|
Surface accuracy |
λ/4 λ/8 λ/10 |
|
Parallelism |
<30 arc sec |
|
Bevel |
0.1~0.3mm x 45 degree |
|
Coating |
AR or Custom |
